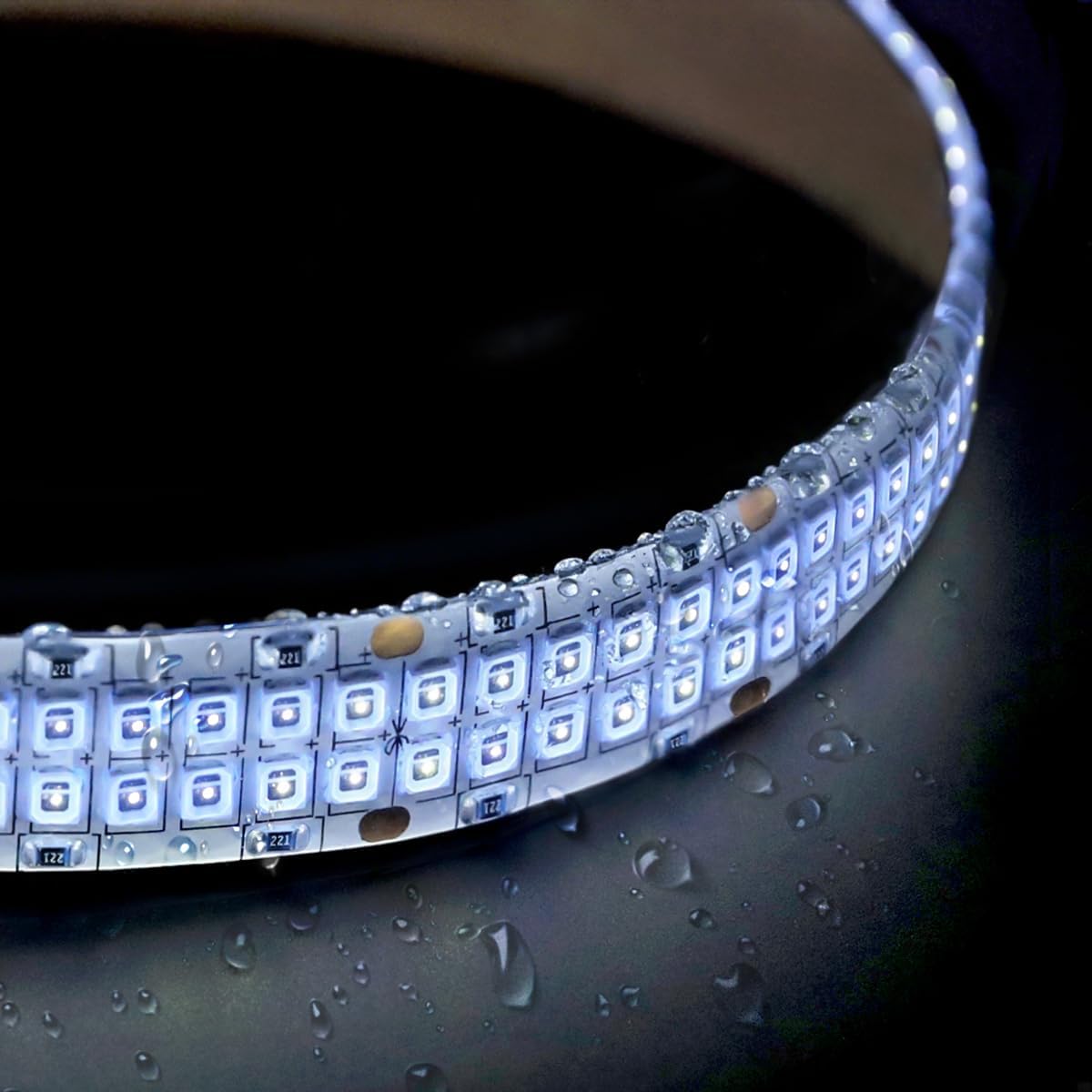

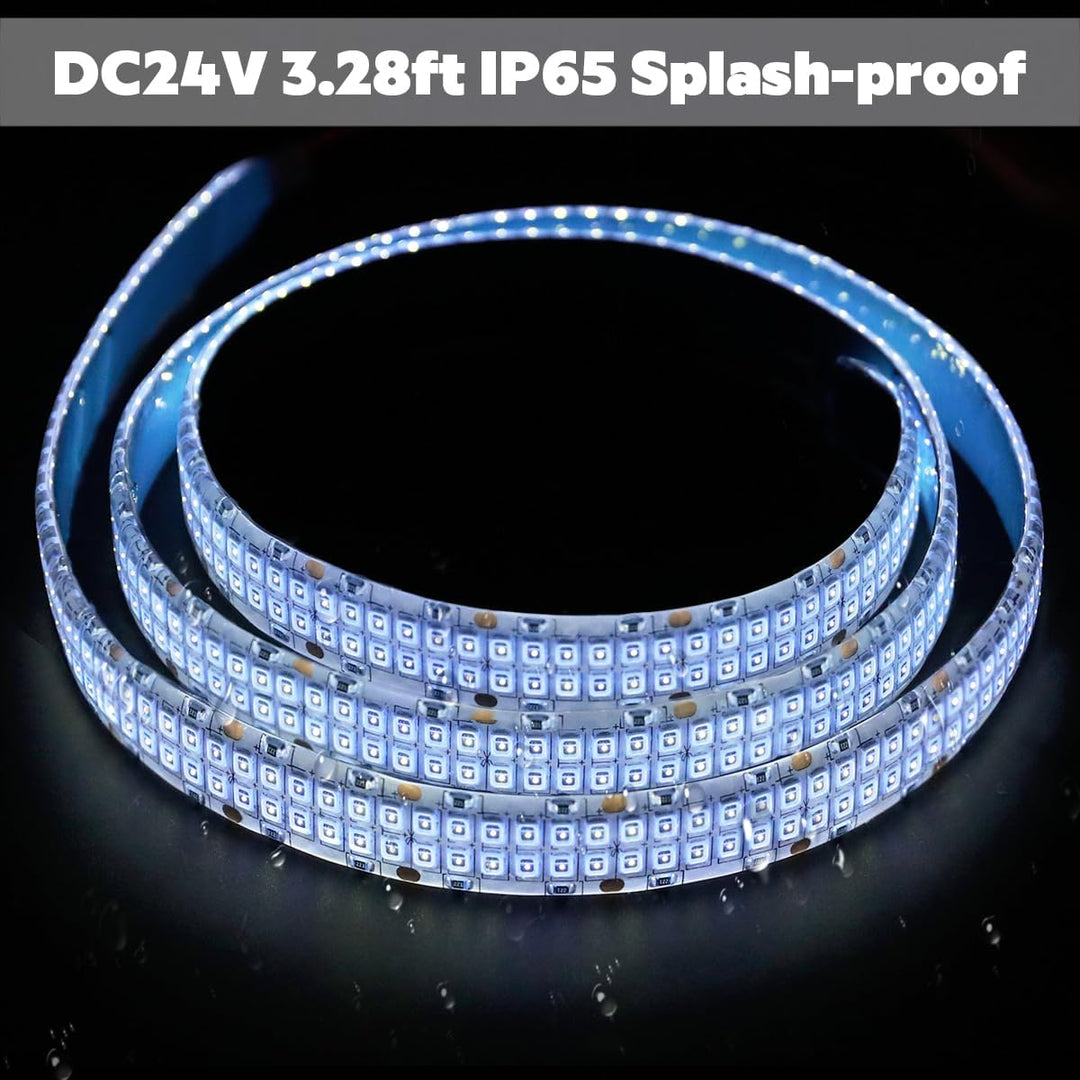

Harness the power of true 365 nm ultraviolet light in a compact, high-output form. This 24 V, 1-meter double-row UV Light Strip features 480 high-power LEDs to deliver uniform and intense UV-A illumination. Built for resin curing, fluorescence testing, material inspection, forensic work, and anti-counterfeiting, it’s a professional-grade solution in a flexible, cuttable, and dimmable format.

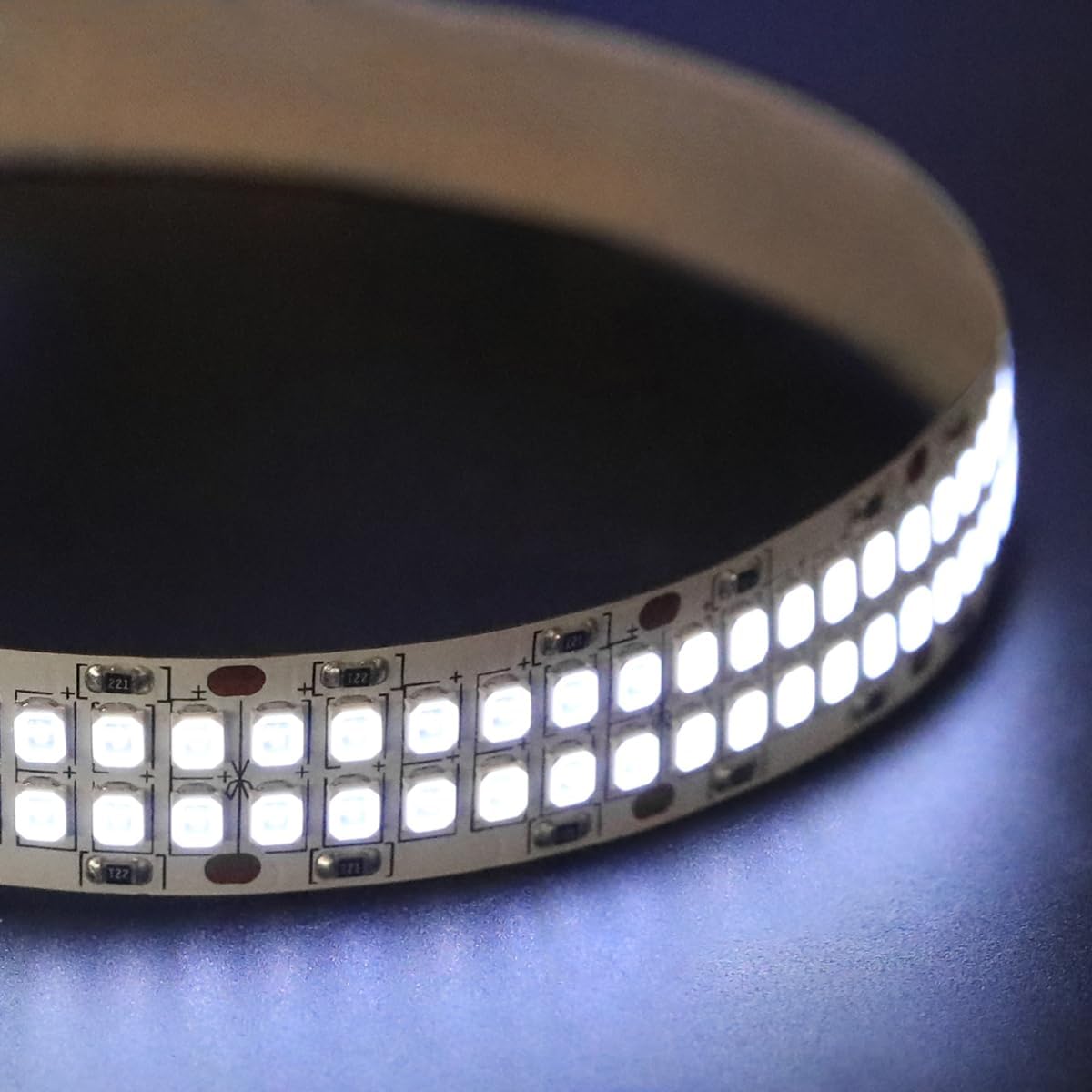

The strip’s dual-row 15 mm design ensures near-continuous UV coverage with just 4 mm spacing between LEDs. Running at 22W, it steps up performance beyond standard LED strips. It’s flexible enough to wrap, bend, or contour into narrow setups, and adhesive-backed for easy installation.

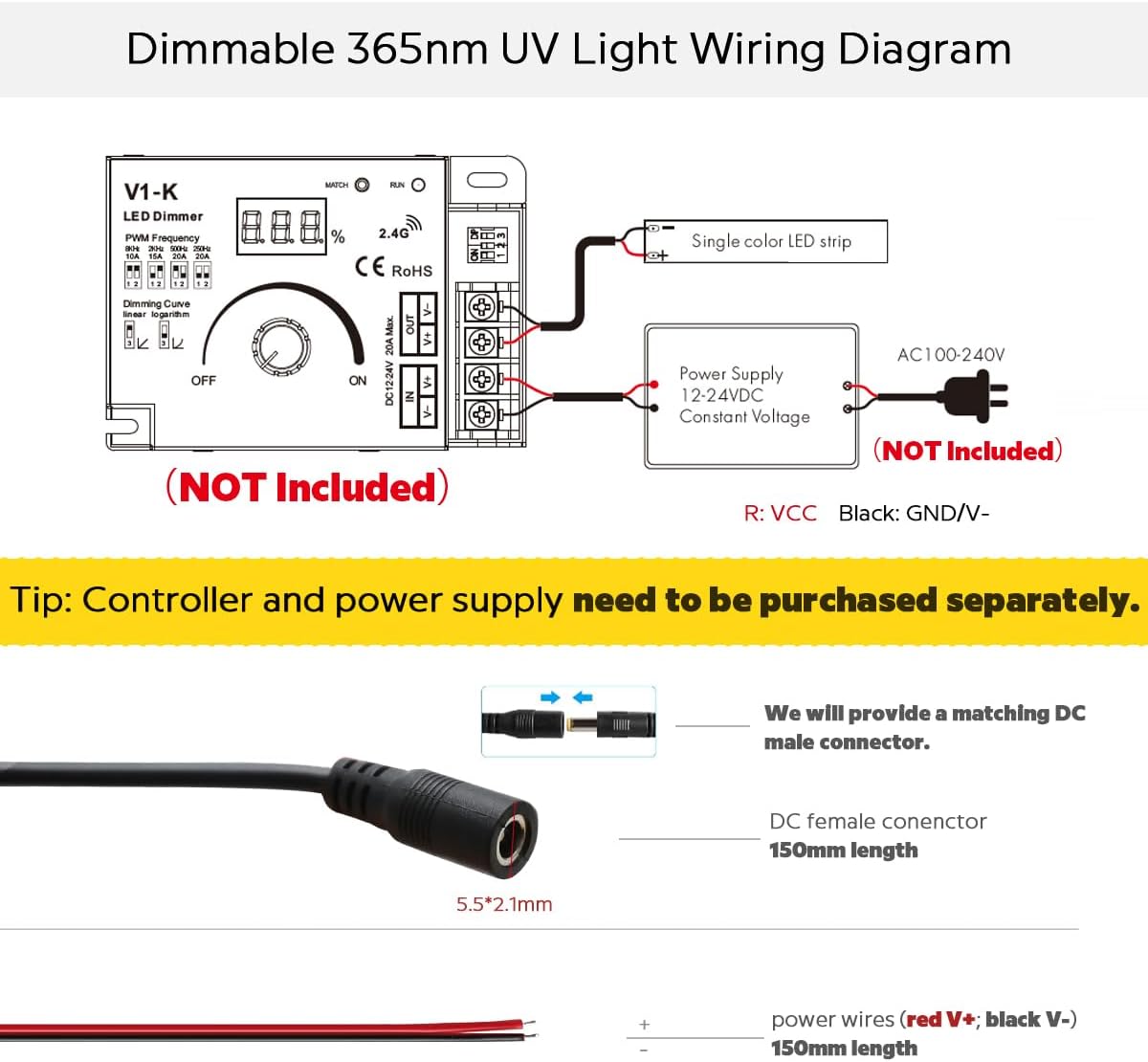

Pair it with a DC24V power supply (≥ 30 W recommended) and a suitable dimmer, and you’ve got a versatile UV tool for your lab, studio, workshop, or inspection environment.
✨ Key Features & Advantages
-
Real 365 nm UV-A Emission — ideal for applications that require strong fluorescence, minimal visible light interference, or optimal UV curing.
-

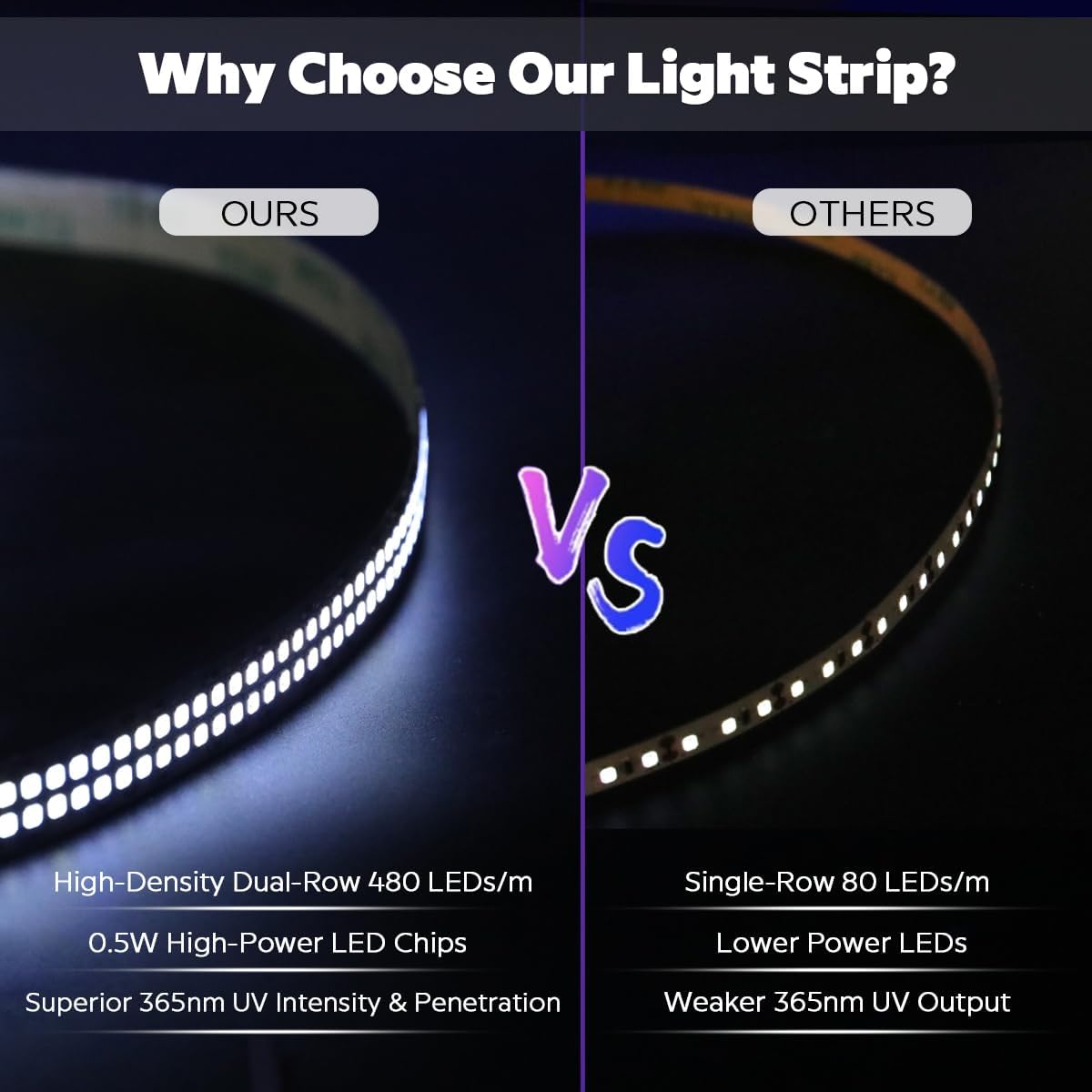

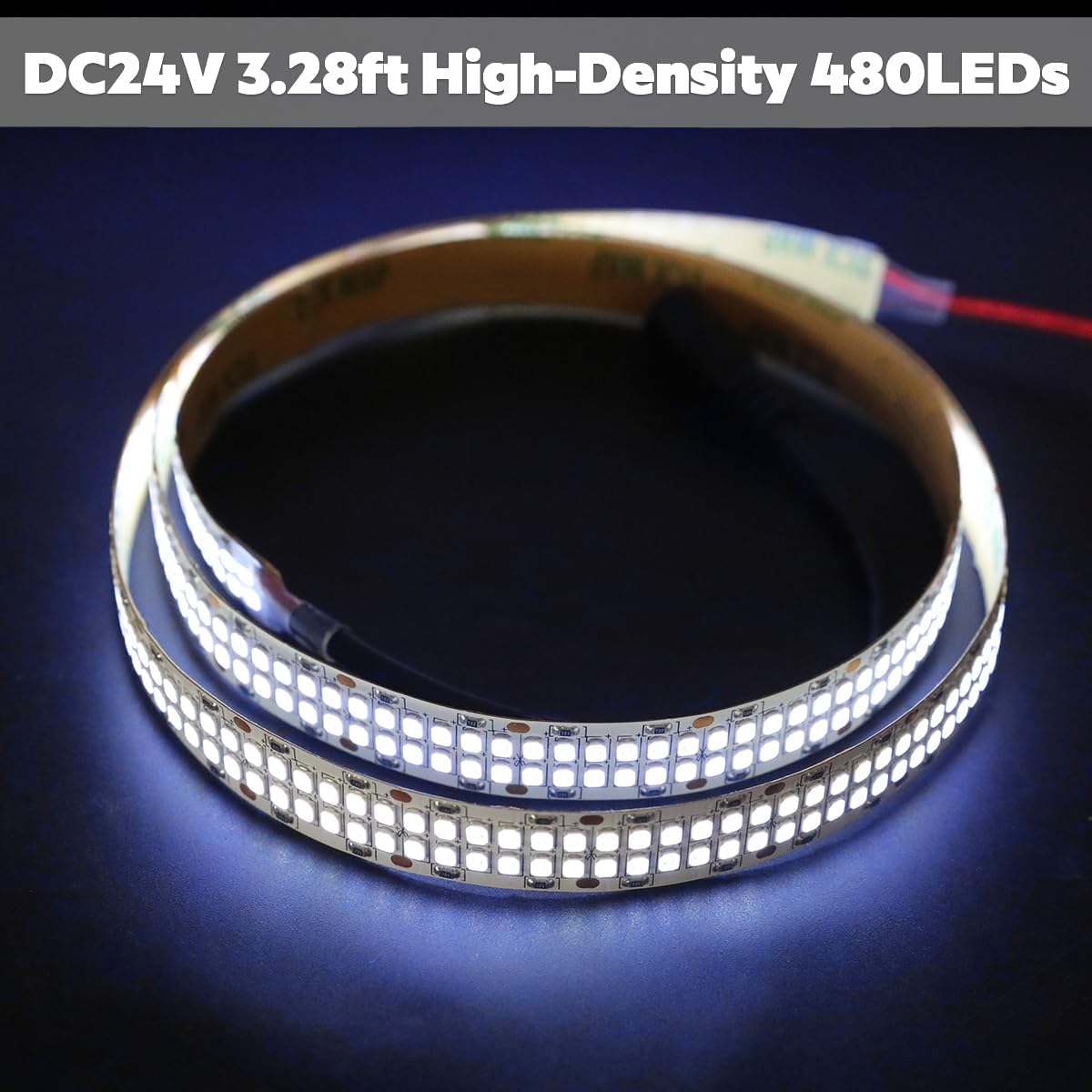

High Density, Dual-Row Layout — 480 LEDs per meter, with only ~4 mm spacing for smooth, uniform coverage.
-
High Power Output (≈ 22W) — each LED uses 0.5 W chips to boost intensity and reduce curing times.
-
DC24V Operation for Stable Performance — less voltage drop across longer runs, enabling reliable multi-strip setups.
-

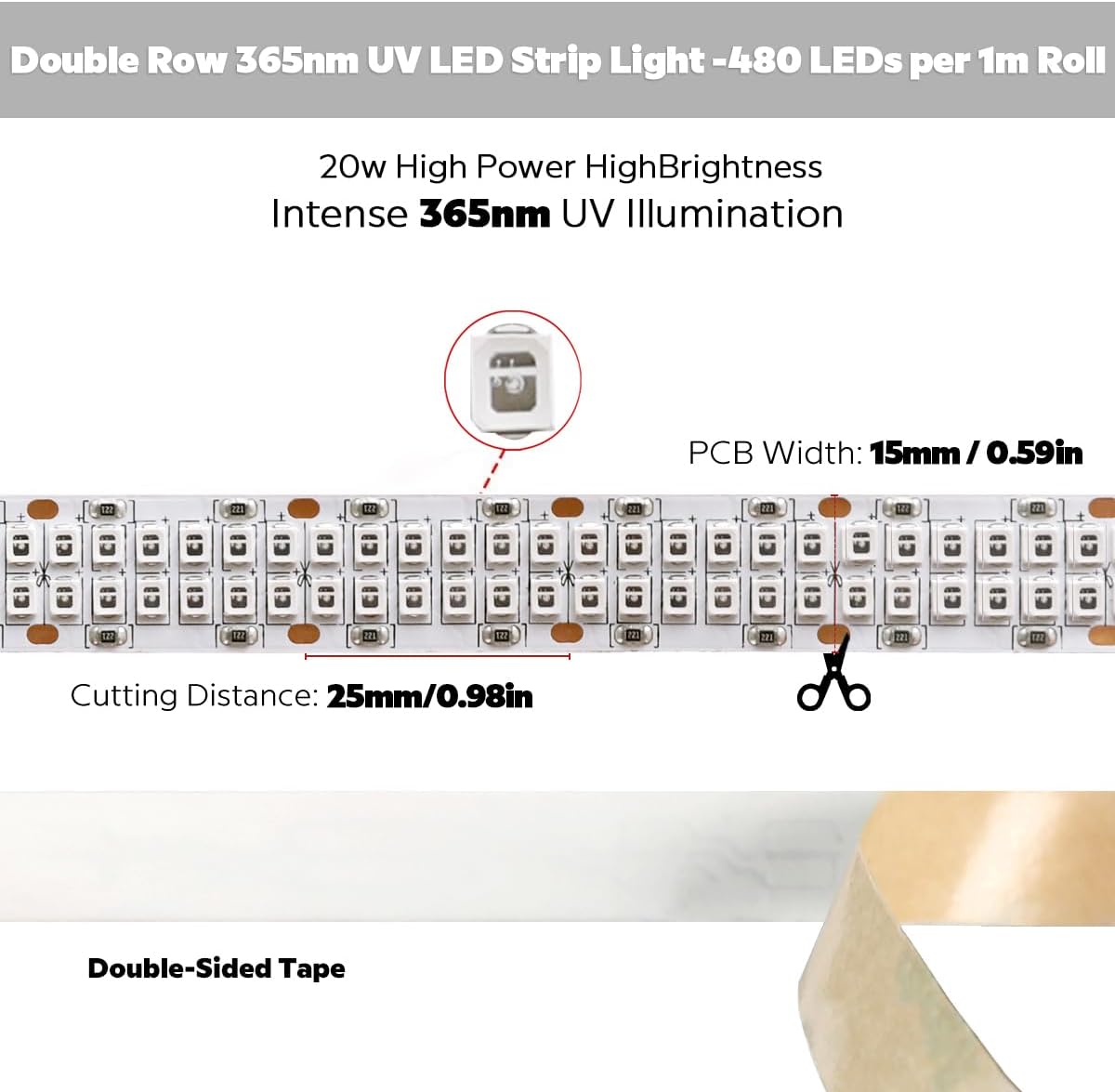

Flexible & Cuttable Design — can bend around curves and be cut every 25 mm (12 LEDs) without damaging the rest.
-
Dimmable Output — supports PWM or analog dimmers to adjust UV intensity as needed.
-
Compact & Space-Saving — with a 15 mm width profile and IP20 (indoor use), it fits tight or enclosed spaces.
-
Broad Application Range — resin & glue curing, mineral fluorescence inspections, document security checks, artifact restoration, scientific experiments, and more.
-
Easy Installation — comes with adhesive backing and DC plug; can also be hardwired for more permanent setups.
🔧 Specifications
| Parameter |
Value |

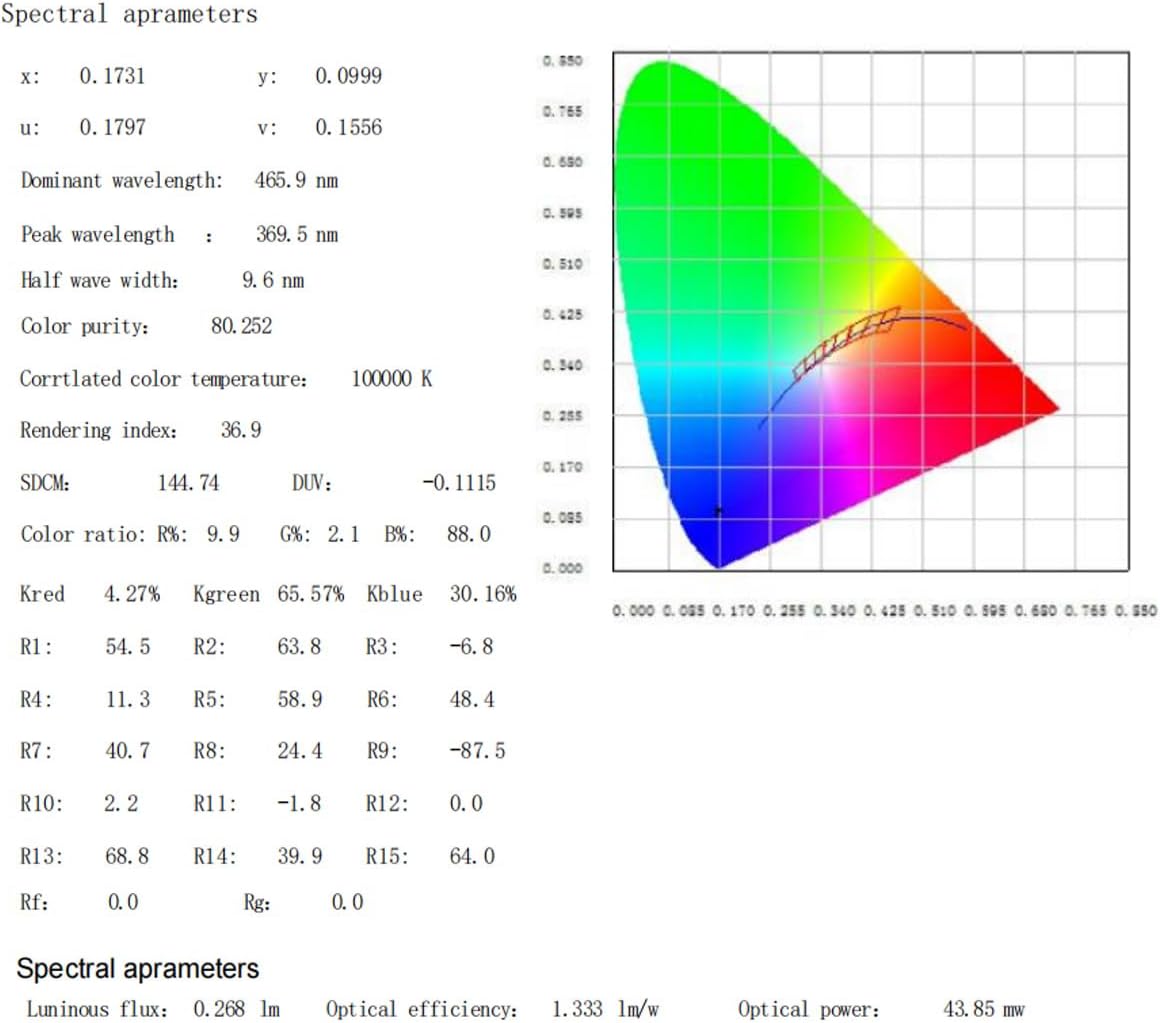

| Wavelength |
365 nm ± 5 nm |
| LED Chip Type |
SMD 2835 |
| Length |
1 m / 3.28 ft |
| LED Count |
480 LEDs |
| Voltage Input |
DC 24 V |
| Power Consumption |
~22 W per roll |
| PCB Width |
15 mm / 0.59 in |
| Cut Interval |
Every 25 mm (12 LEDs) |
| Beam Angle |
120° |
| IP Rating |
IP20 (non-waterproof) |
| Connection |
Adhesive backing; DC plug + hardwire option |
✅ Why Choose This Strip
-
Performance you can trust — Unlike generic “black light” strips, this is tuned to 365 nm, where many UV-curable resins and fluorescent materials respond best.
-
Faster, more consistent curing — High-power chips and dense layout reduce spotty coverage and cure times.
-
Customizable and scalable — Trim to length, bend as needed, or chain strips for larger setups without performance loss.
-
Professional-grade solution — Suited for lab, industrial, scientific, and creative environments—not just hobby use.
-
Safe, low-voltage operation — 24 V ensures safer handling; just be sure to pair with proper power supplies and dimmers.
❓ FAQs
Q: Do I need a specific power supply?
A: Yes — use a 24 V DC power supply rated ≥ 30 W for each 1M strip. Undersizing may reduce brightness or damage the strip.
Q: Can I cut it to a shorter length?
A: Yes — the strip is cuttable every 25 mm (12 LEDs). Be sure to maintain correct polarity when reconnecting segments.
Q: Is this waterproof?
A: No — it’s IP20 rated for indoor and dry environments only. Avoid moisture or exposure to liquids.
Q: Is it safe to use?
A: Ultraviolet at 365 nm can damage eyes and skin with prolonged exposure. Use protective eyewear and limit exposure. Avoid direct contact during operation.
Q: Can this be dimmed?
A: Yes — compatible with PWM or analog dimming methods. Just ensure your dimmer and power supply support the required current.
Q: What applications is it suitable for?
A: Resin/glue curing, fluorescence and forensic inspection, anti-counterfeiting, mineral detection, museum restoration, lab experiments, etc.
24V DC Low Voltage Transformer Required!
Compatible Controller and Remote: (Optional)
Looking for other Strip Lights? Check out Strip/Tape Light Collections.
We provide eco friendly lights with customer friendly service. Our products are backed by our manufacturer's money-back guarantee, ensuring you receive a quality product free from defects. Feel free to contact us for any help or advice with this product!
Reason to Buy from Us:
- No surprises or hidden fees.
- Safe payments via PayPal.
- 30 Day Money Back Guarantee.
- Real helpful humans on our support helpdesk!
- Tracking number for every order
Power: 22W per Feet
Light Color Temperature: 2700K, 3000K, 4000K, or 5000K
Size: 15mm (W) x 3.3' (L)
LED: 480 LED Chips/M
Board Width: 15mm double row

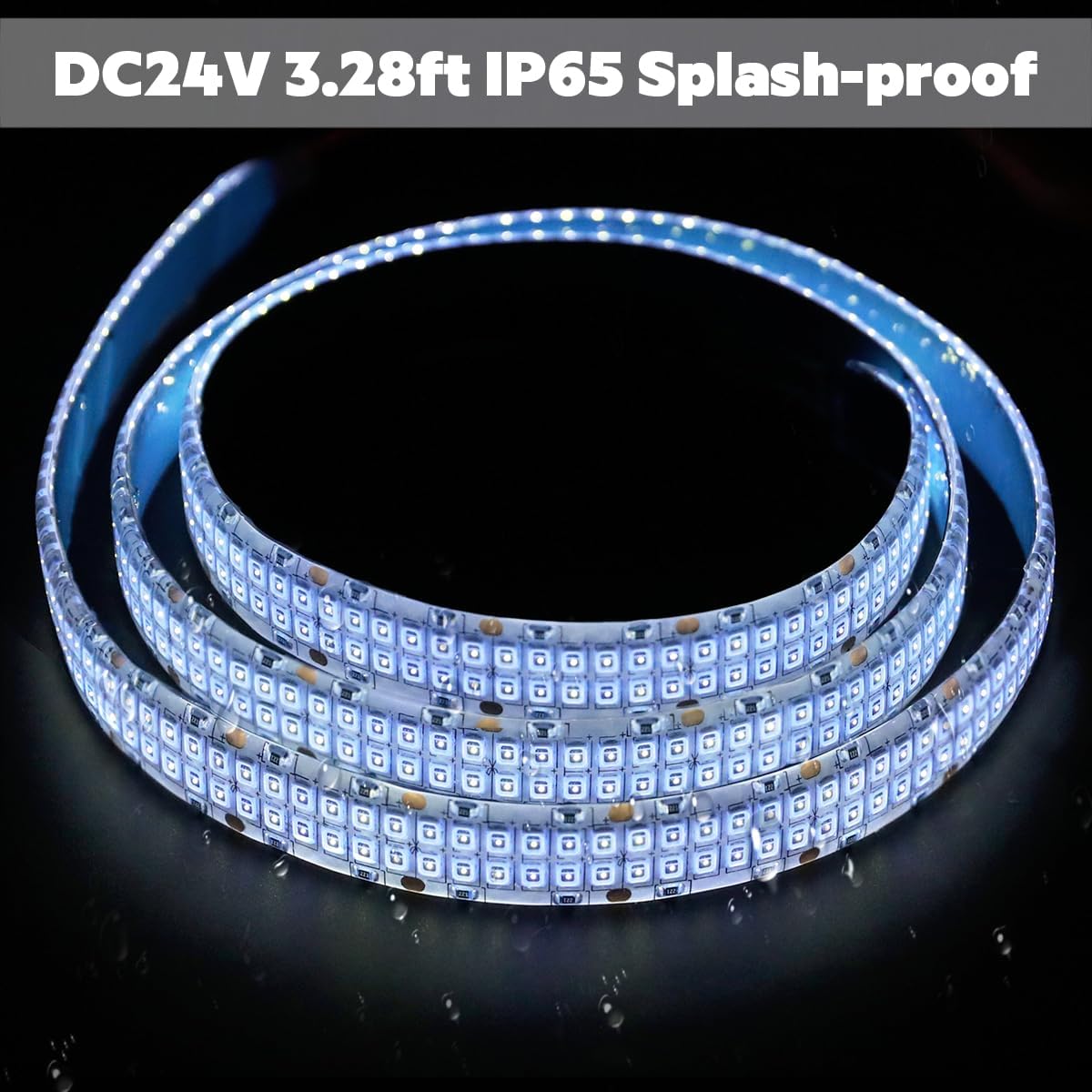

Waterproof Rating: IP20 and IP65
Beam Angle: 180°
Life Span: 50,000 Hrs
Application: Resin Curing, Fluorescence, Inspection
