12V/24V DC Low Voltage Dimmable Compact Transformers UL Listed LED Driver Indoor Rated

12V/24V DC Low Voltage Dimmable Compact Transformers UL Listed LED Driver Indoor Rated
12V/24V DC Low Voltage Dimmable Compact Transformers UL Listed LED Driver Indoor Rated
12V/24V DC Low Voltage Dimmable Compact Transformers UL Listed LED Driver Indoor Rated
12V/24V DC Low Voltage Dimmable Compact Transformers UL Listed LED Driver Indoor Rated
12V/24V DC Low Voltage Dimmable Compact Transformers UL Listed LED Driver Indoor Rated

12V/24V DC Low Voltage Dimmable Compact Transformers UL Listed LED Driver Indoor Rated

Regular price $33.99
/
Subscribe to get 10% off on your first purchase!

Specifications

• Input: 120V AC, 0.7A, 50/60Hz • Output: 12V DC 60W, 24V DC 60W and 24V DC 96W • Dimensions: 2.83x1.53x0.79 inches (LWH) • Rated for indoor use - Suitable for dry and damp locations • Fully Dimmable

Compatibility: Works with Triac/ELV/MLV dimming, Lutron-CL, and Diva series.
Dimming Range: 0-100%
Certification: UL Certified, Class 2, Type HL
Environment: Suitable for damp and dry locations.
Input Voltage: 120V AC
Frequency Range: 47-63Hz
Efficiency: 88% @ 120VAC
Operating Temperature: Tcase = -40°C to +60°C
Operating Humidity: 20-95% RH non-condensing
Storage Conditions: -40°C to +90°C, 10-95% RH
Power Factor: Built-in active PFC, typical power factor = 0.94
Total Harmonic Distortion (THD): <20% (@100% load)
Type: Constant voltage
Load Range: Super low loading request, works perfectly at 20-100% load.
Protection: Short-circuit and overload protection.

Shipping calculated at checkout.

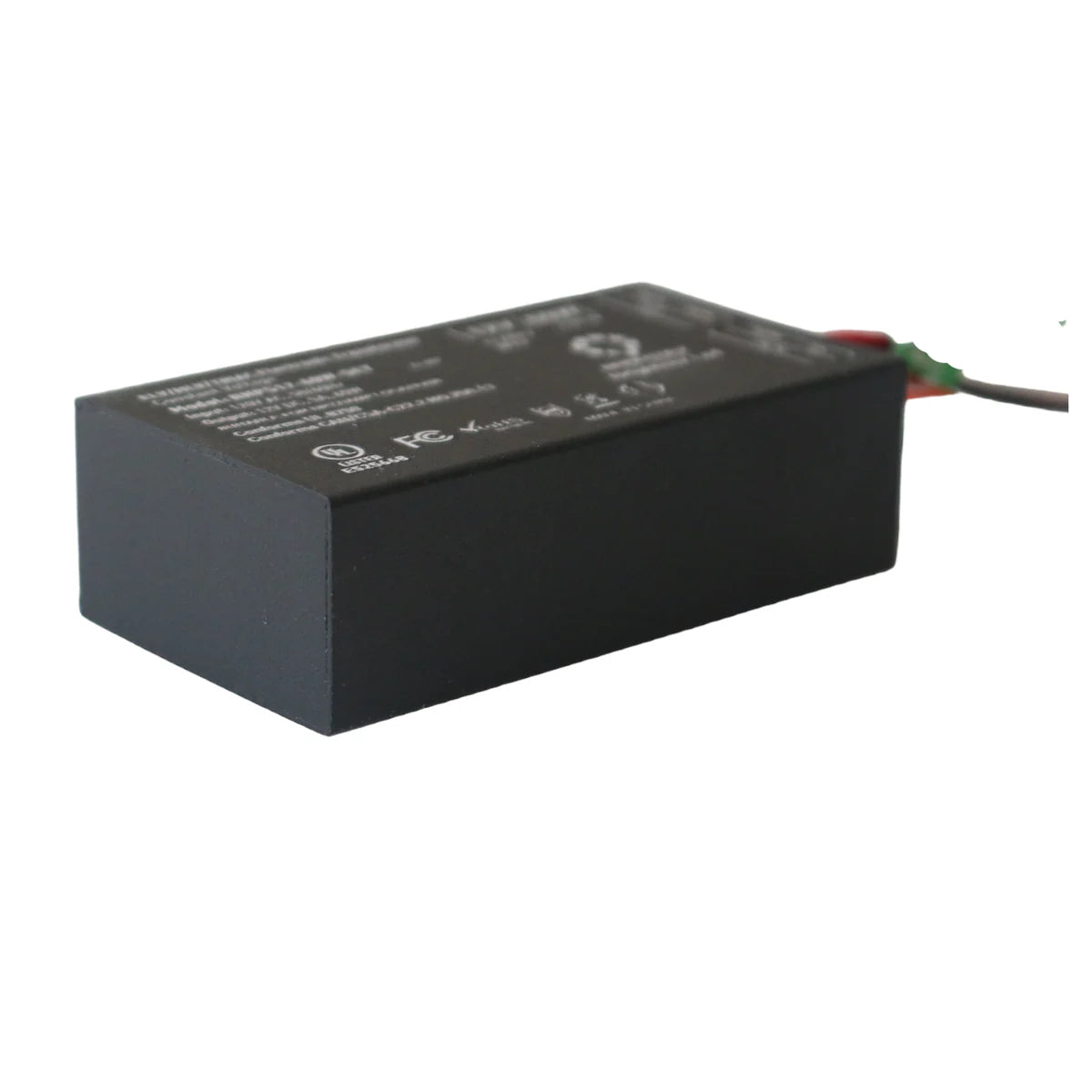

Introducing the Smallest Dimmable Transformer, designed for maximum efficiency and convenience. Measuring only 2.83x1.53x0.79 inches (LWH), this UL-certified dimmable transformer (LED driver) is compatible with Triac/ELV/MLV dimming systems, making it perfect for various lighting applications.

Ideal for dry and damp locations, it fits easily into a 4" junction box. Its compact size makes it a versatile option for a variety of dimming systems.

Specifications:

  • Input: 120V AC, 0.7A, 50/60Hz
  • Output: 12V DC 60W, 24V DC 60W and 24V DC 96W
  • Dimensions: 2.83x1.53x0.79 inches (LWH)

Features:

  • Compatibility: Works with Triac/ELV/MLV dimming, Lutron-CL, and Diva series.
  • Dimming Range: 0-100%
  • Certification: UL Certified, Class 2, Type HL
  • Environment: Suitable for damp and dry locations.
  • Input Voltage: 120V AC
  • Frequency Range: 47-63Hz
  • Efficiency: 88% @ 120VAC
  • Operating Temperature: Tcase = -40°C to +60°C
  • Operating Humidity: 20-95% RH non-condensing
  • Storage Conditions: -40°C to +90°C, 10-95% RH
  • Power Factor: Built-in active PFC, typical power factor = 0.94
  • Total Harmonic Distortion (THD): <20% (@100% load)
  • Type: Constant voltage
  • Load Range: Super low loading request, works perfectly at 20-100% load.
  • Protection: Short-circuit and overload protection.

Upgrade your lighting setup with this efficient, compact, and versatile transformer that ensures high performance and reliability in all your projects.
