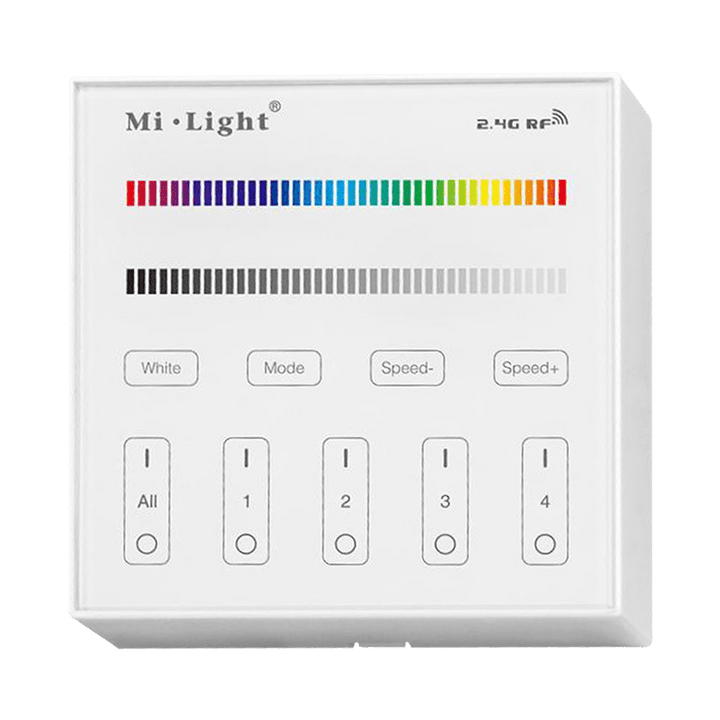

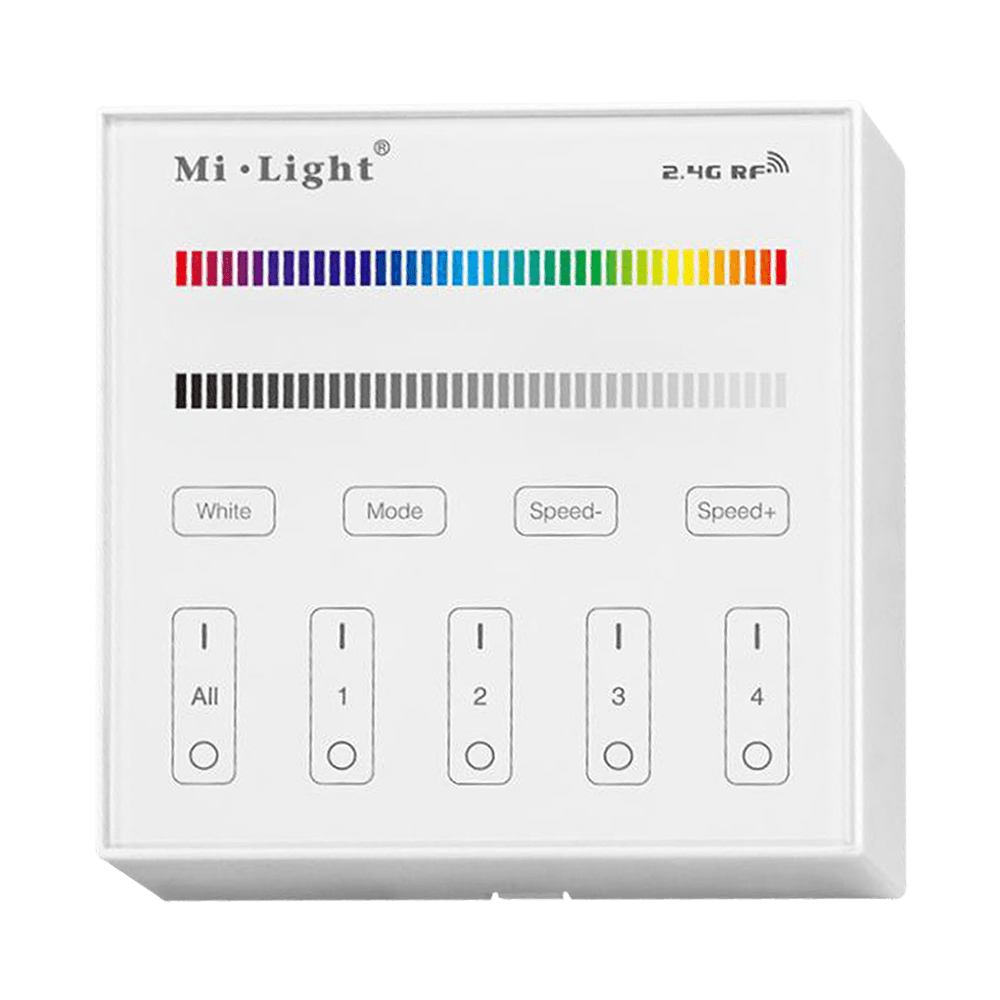

MiBoxer RGB/RGBW Wall Mounted Smart Panel Wireless Remote 4 Zones 2.4G RF
MiBoxer RGB/RGBW Wall Mounted Smart Panel Wireless Remote 4 Zones 2.4G RF
Specifications

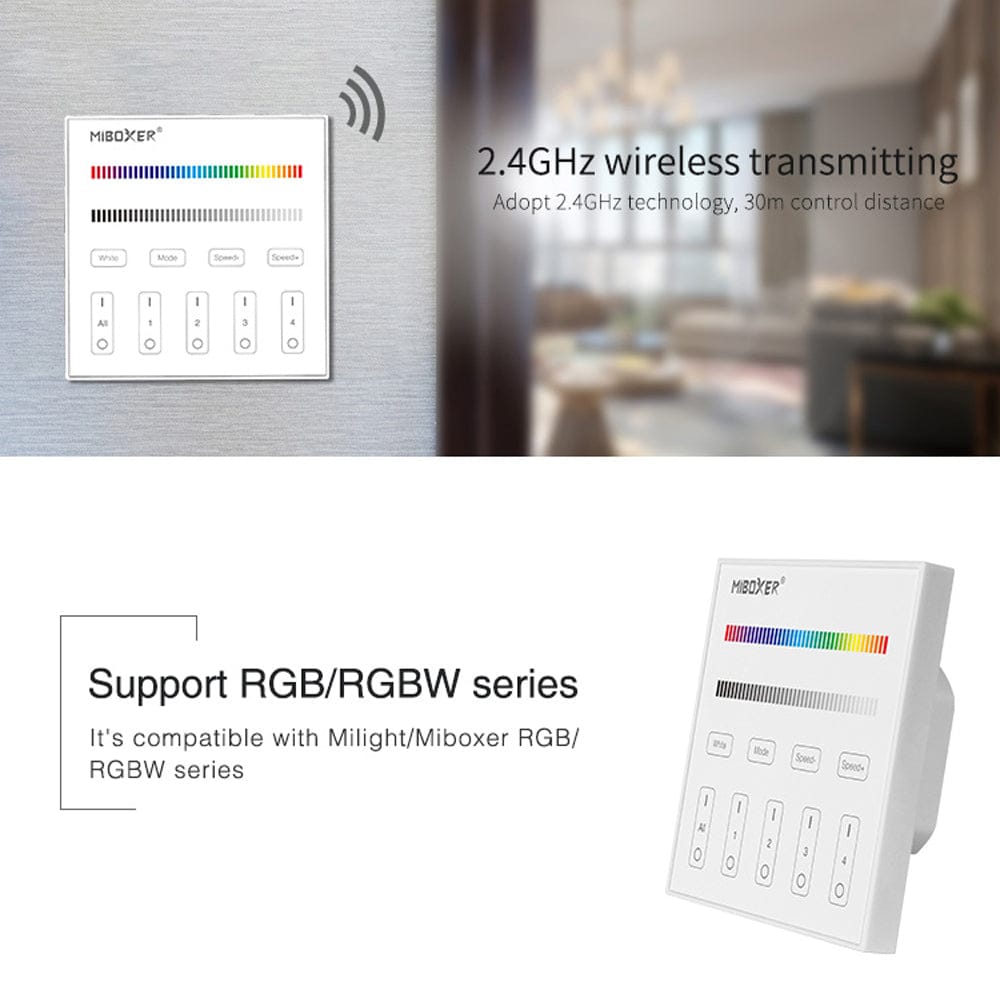

2.4GHz RF Wireless Transmitting up to 30 Meters (98 feet) Control Distance, that means you don't have to install it with lamps in the same circuit, don't have to change any electric circuit exist. Free installation, no wiring, more convenient and smarter. 4 Zones Control Separately. Each Zone Control Countless Lamps, LED Strips or Controllers. You don't have to install 1pcs panel remote for each lamp,1pcs panel controller can control up to 4 groups lamps, each group can be any lamps LED strip within 30 meters (98 feet).

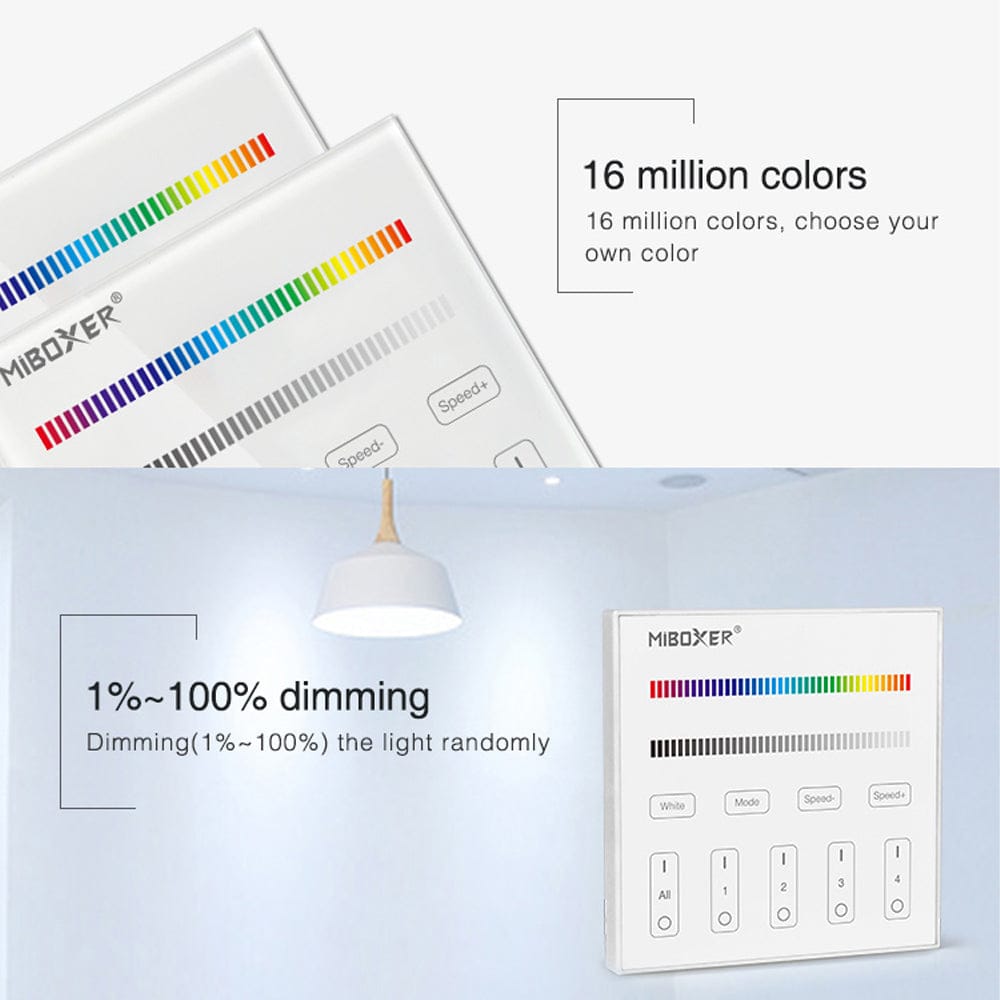

Dimming 1%-100%, 9 Color Changing Models, choose the color atmospheres you want. 16 million color combinations available. Can Light up pure white light. Sensitive touching, Touch screen is stable. Powered by 2pcs AAA batteries package does not include. You don't have to make any change to your house's electric circuit. Just charge it with 2pcs AAA batteries, install or paste it on the wall. Touching button with sound
Link / Unlink
Link Instructions:
- Switch off the light, after 10 seconds switch on again.

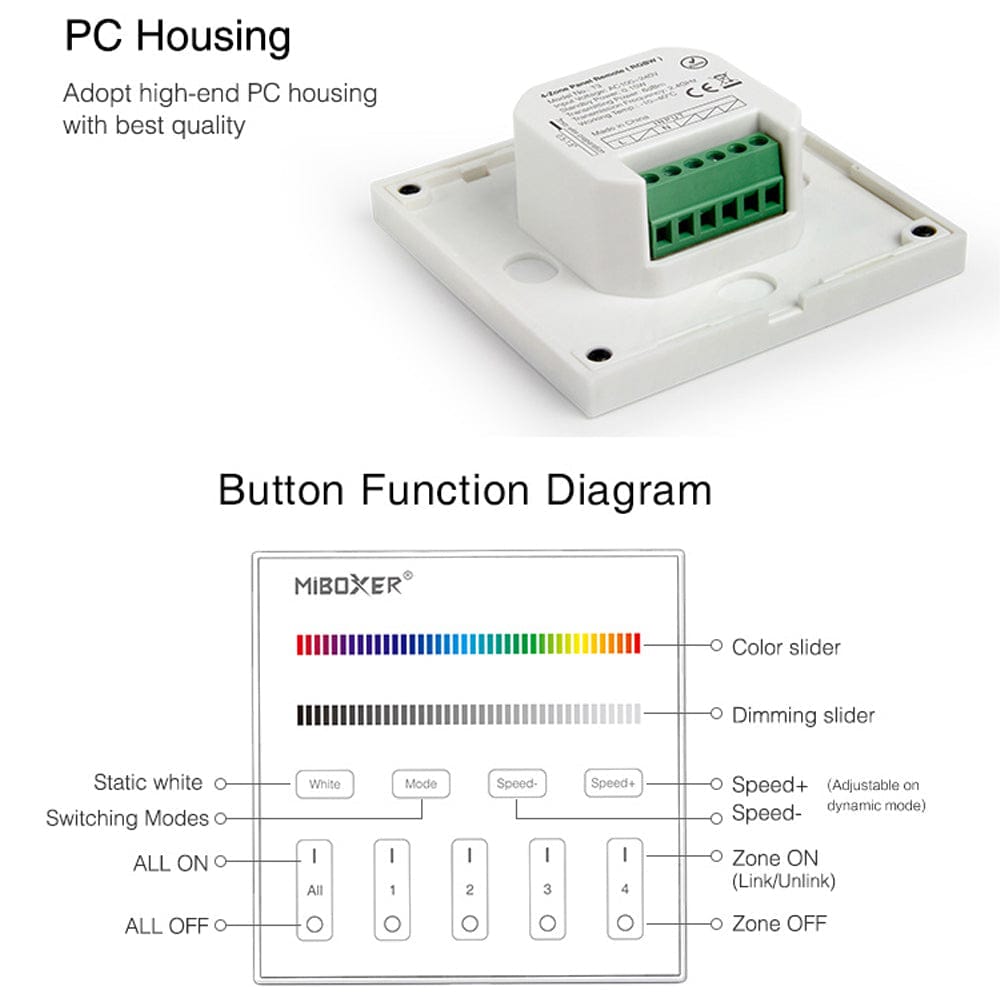

- When the light on, short press any zone of " I " 1 times within 3 seconds.
- The light blinks 3 times slowly means the linking is done successfully.
Note: If the light does not blink slowly, the linking failed, please switch off the light again, and follow the above steps again.
Unlinking Instructions:
- Switch off the light, after 10 seconds switch on again.
- When the light is on, long press any zone of " I " for 3 seconds. (Unlinking must be the same zone with the Linking)
- The light blinking 10 times quickly means the unlinking successfully.
Note: If the light does not blink quickly, the unlinking failed, please switch off the light again, and follow the above steps to unlink again.
Attention:
- Please check the cable, and make the circuit is correct before when power on.

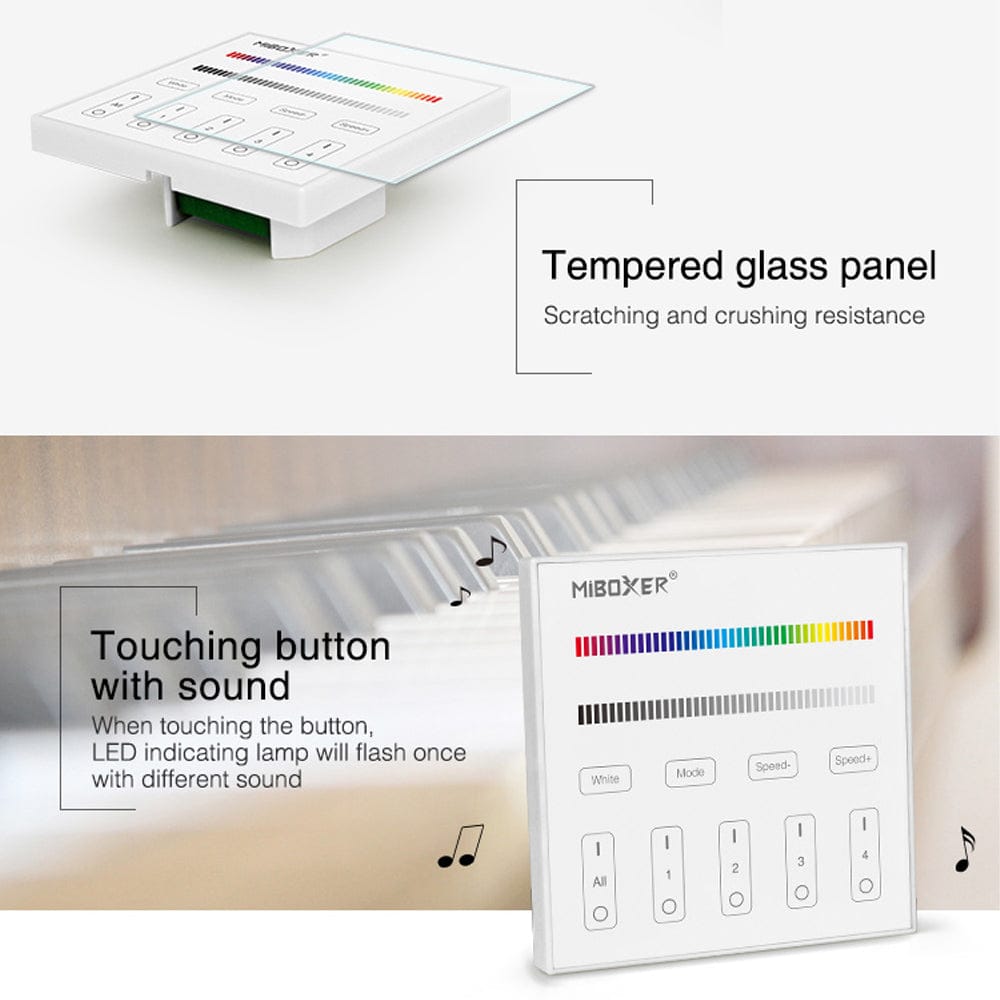

- When installation, please handle it with care to avoid breaking the glass panel.
- Please don't use the lighting fixtures around the metal area and high magnetic field, otherwise, it will badly affect the control distance.
