PIR Infrared and Motion Sensor DC12V/DC24V Low Voltage For Strip Lights, Cabinets, Closets, Pantry, Indoors

/
Subscribe to get 10% off on your first purchase!

Specifications

• Passive Infrared (PIR) motion detection for automatic lighting control • Adjustable sensitivity to fine-tune detection range • DC5-24V, Max 60W for DC12V and 80W for DC24V • Programmable delay time (e.g., 5–30 seconds) before lights turn off • Wide detection angle (up to ~120° coverage) • Compact, low-profile design for cabinets, closets, and wardrobes • Low-voltage compatible, easy to wire into LED circuits • Simple installation with flexible mounting options • Designed for indoor use only (not weather-rated)
Shipping calculated at checkout.
  • Same-Day Free Shipping on In-Stock Orders Before 2 PM PST
  • Call Us: (833) 717-2728
  • Trusted by 10,000+ Customers
  • Contractor-Grade Outdoor Lighting
  • Easy Returns and Exchanges
  • Secure Checkout with Shop Pay, PayPal, Apple Pay, Google Pay, and Major Cards

Pairs well with

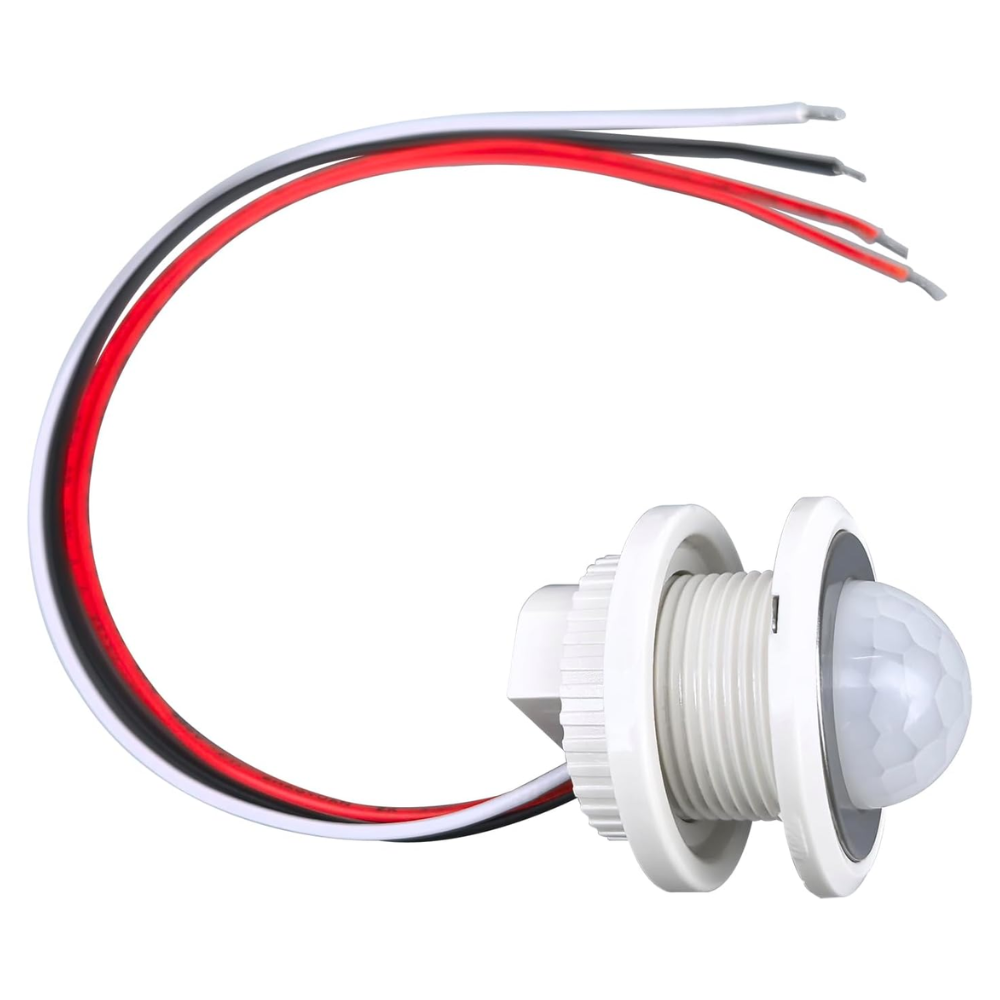

The PIR Cabinet Motion Sensor is a compact, low-voltage detector designed to automatically trigger lighting in cabinets, closets, wardrobes, or other indoor settings. With adjustable sensitivity and angle, it provides a seamless and hands-free automation experience, ideal for optimizing interior lighting control.

Key Features & Specifications

  • Passive Infrared (PIR) Detection

    • The sensor activates lighting when motion is detected within its field of view, and turns off after a set delay.

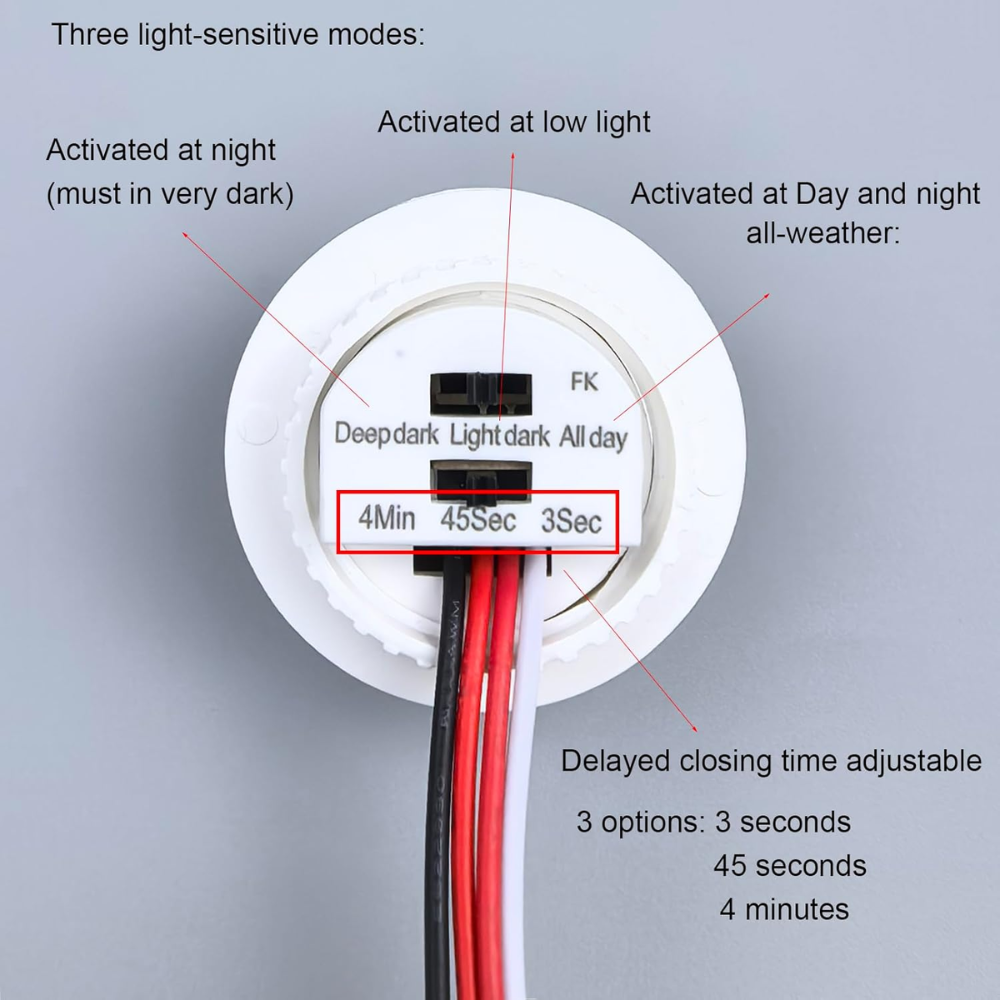

  • Adjustable Sensitivity & Delay

    • You can fine-tune how close a motion must be to trigger the sensor (sensitivity).

    • Delay times can be programmed to keep the light on for a chosen duration (e.g. 5, 10, 15, 30 seconds, etc.).

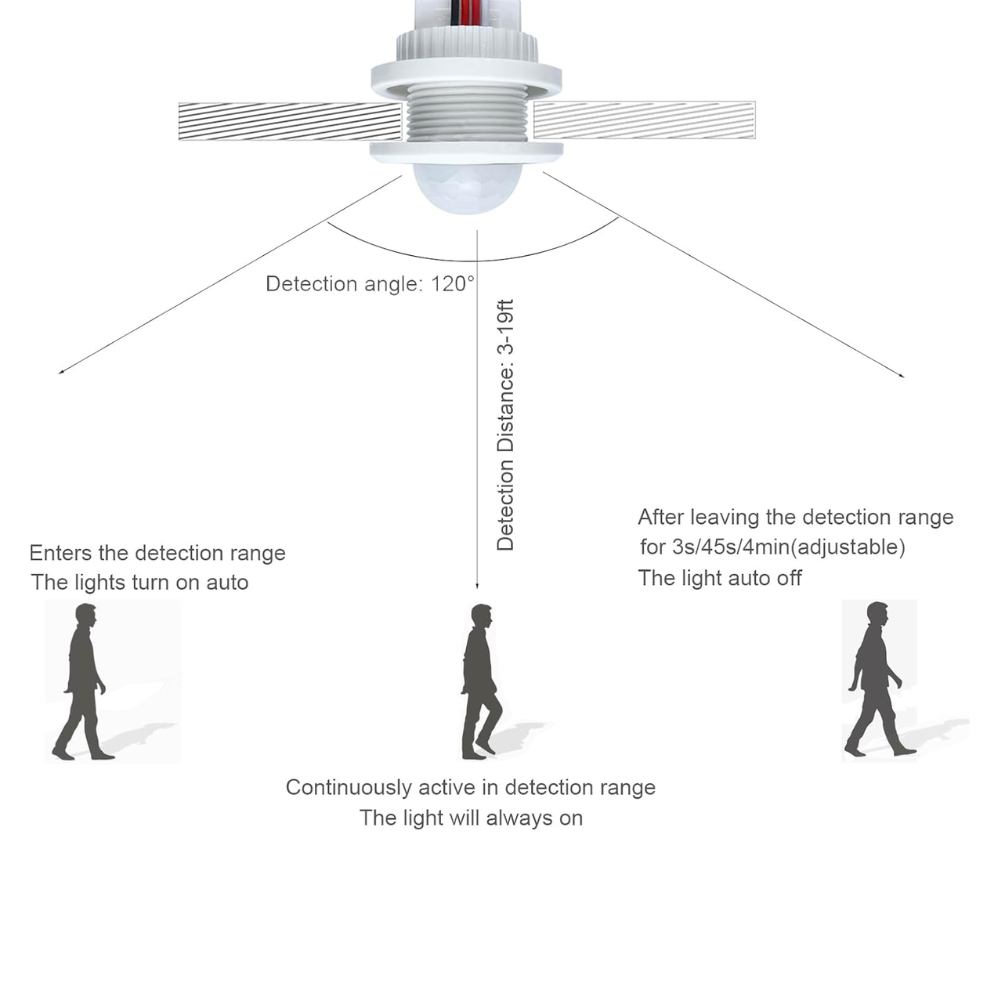

  • Wide Detection Angle

    • The sensor offers a generous detection angle (often up to ~120° or more) to capture movement across a wide area.

  • Compact & Discreet Design

    • Slim, low-profile housing that fits inside cabinets or tight spaces without drawing attention.

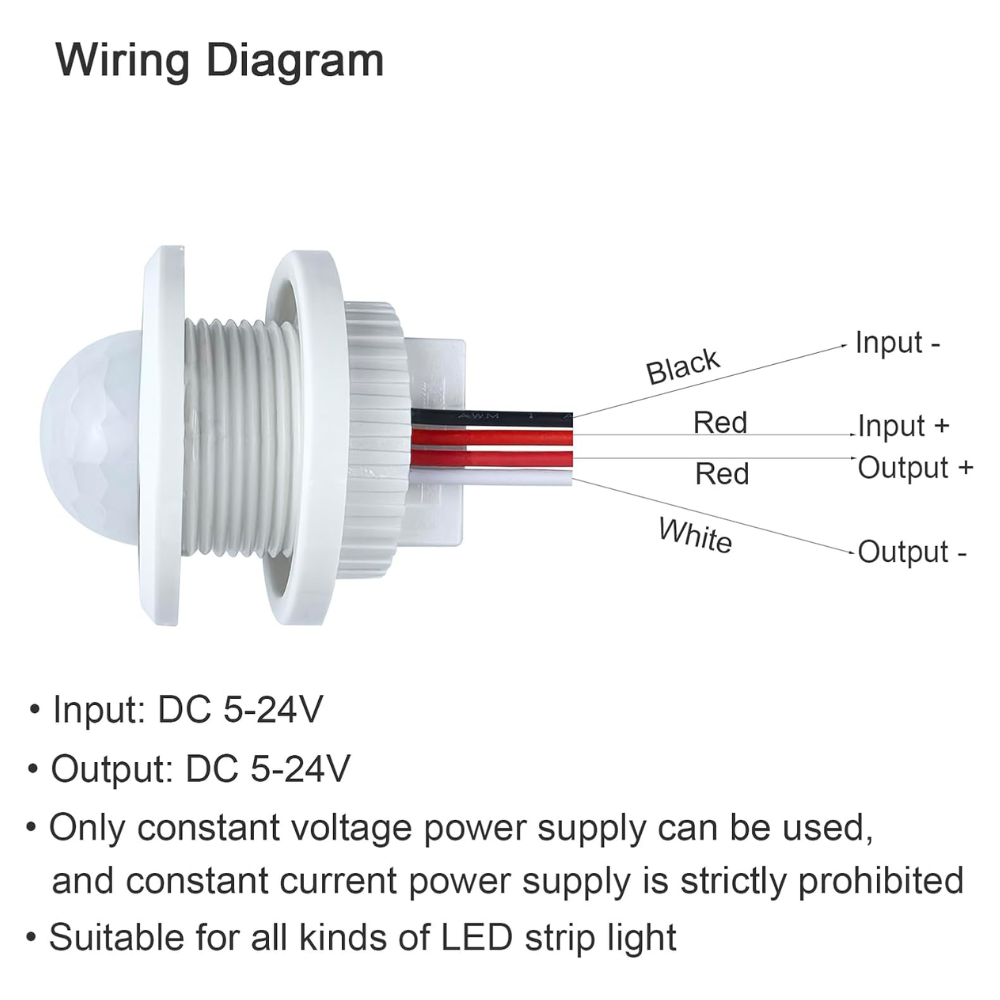

  • Simple Wiring & Integration

    • Typically built for low-voltage systems.

    • Easy to wire into existing LED cabinet lighting circuits.

  • Energy Efficiency

    • Only activates when motion is detected, minimizing wasted power.

    • Helps extend the life of LEDs by avoiding unnecessary “on” time.

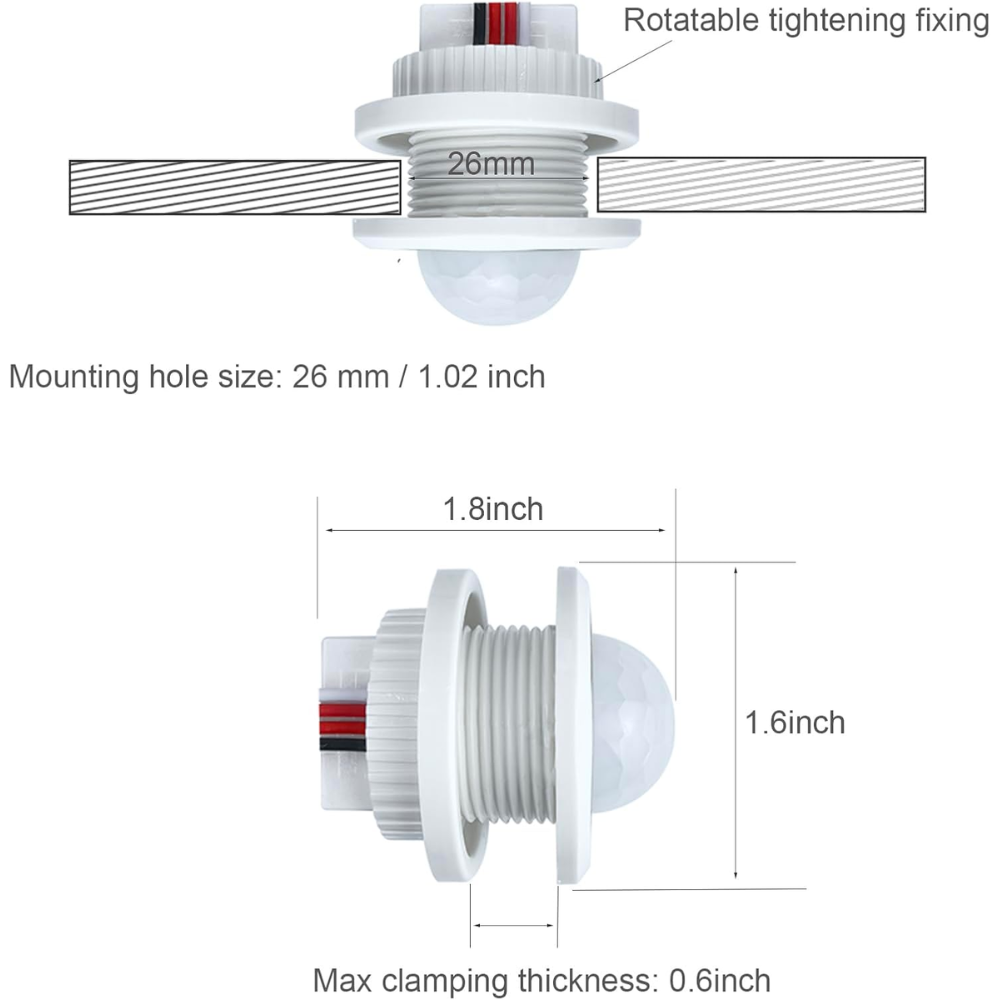

  • Versatile Mounting Options

    • Designed to sit inside cabinets, closets, under shelves, or within enclosures.

    • Adjustable mounting position to optimize detection coverage.

  • Indoor Use / Non-Weather Rated

    • Meant for indoor environments; not designed for outdoor or wet locations unless otherwise specified.

We provide eco friendly lights with customer friendly service. Our products are backed by our manufacturer's money-back guarantee, ensuring you receive a quality product free from defects. Feel free to contact us for any help or advice with this product!

Reason to Buy from Us:

  1. No surprises or hidden fees.
  2. Safe payments via PayPal.
  3. 30 Day Money Back Guarantee.
  4. Real helpful humans on our support help desk!
  5. Tracking number for every order

Hands-free Lighting: Activates automatically when motion is detected
Customizable Settings: Adjustable sensitivity and shut-off delay
Wide Coverage: Detects movement up to ~120°
Slim Design: Fits easily in cabinets, closets, or wardrobes
Energy Efficient: Only turns on when needed, extending LED lifespan
