TSDC03 24V DC Low Voltage Dimmable Junction Box Transformers Class P UL 8750 Listed LED Driver TRIAC/ELV/MLV Dimming Outdoor Rated

/
Subscribe to get 10% off on your first purchase!

Specifications

• Input: 120V AC 50/60Hz • Output: DC24V 150W, 200W or 300W • Rated for outdoor use • Fully Dimmable • Pigtail plug sold separately
Los gastos de envío se calculan en la pantalla de pagos.
  • Same-Day Free Shipping on In-Stock Orders Before 2 PM PST
  • Call Us: (833) 717-2728
  • Trusted by 10,000+ Customers
  • Contractor-Grade Outdoor Lighting
  • Easy Returns and Exchanges
  • Secure Checkout with Shop Pay, PayPal, Apple Pay, Google Pay, and Major Cards

Pairs well with

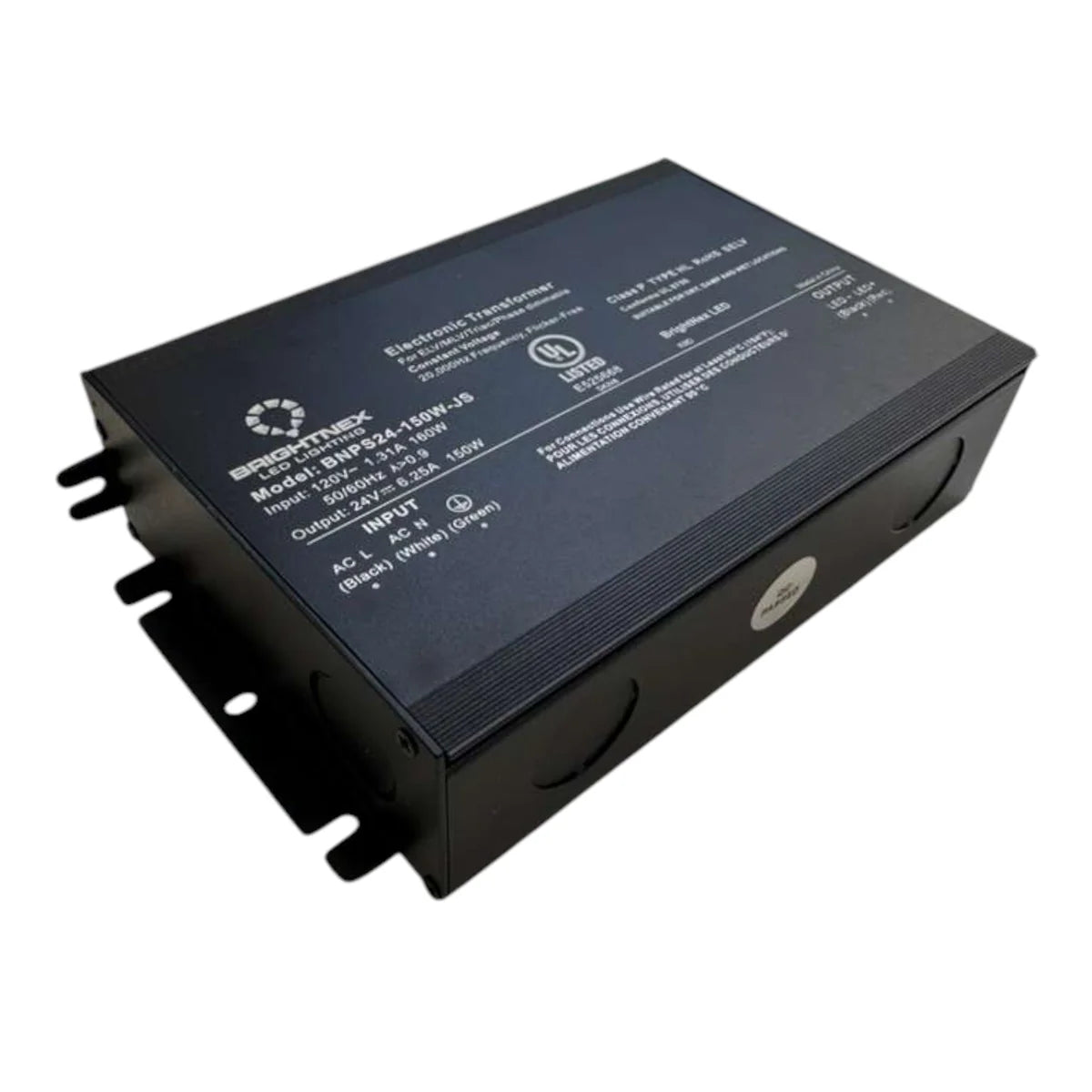

Enhance your lighting setup with this reliable and versatile dimmable low voltage lighting transformer. Featuring an aluminum housing, it is designed for use in wet, damp, and dry locations, ensuring durability and safety.

These 24V 150W, 200W and 300W dimmable constant voltage transformers are high-output, efficient power supplies designed for large LED lighting loads. It supports smooth 0–100% dimming via TRIAC, ELV, and MLV dimmers, and is housed in a durable, compact aluminum enclosure rated for wet, damp, and dry locations.

Engineered for reliability and ease of integration, this transformer includes short-circuit and overload protection, a high efficiency rating of 90%, and Class 2 compliance. It's compatible with industry-standard wall dimmers including Lutron CL and Diva, making it a versatile choice for residential and commercial installations.

🔧 Specifications:

  • Output Voltage: 24V DC

  • Output Power: 150W, 200W or 300W

  • Output Current: 6.25A, 8.34A or 12.5A

  • Input Voltage: 120V AC

  • Frequency: 50/60Hz

  • Efficiency: 90% @ full load

  • Power Factor: > 0.9

  • THD: < 20% @ 100% load

  • Voltage Tolerance: ±1.5V

  • Leakage Current: < 0.5mA @ 120V

  • Load Range: 10% – 100%

  • Protections:

    • Short Circuit – hiccup mode, auto-recovery

    • Overload – hiccup mode, auto-recovery

  • Operating Temp: -40°F to +140°F (-40°C to +60°C)

  • Storage Temp: -40°F to +194°F

  • Humidity: 20–95% RH (non-condensing)

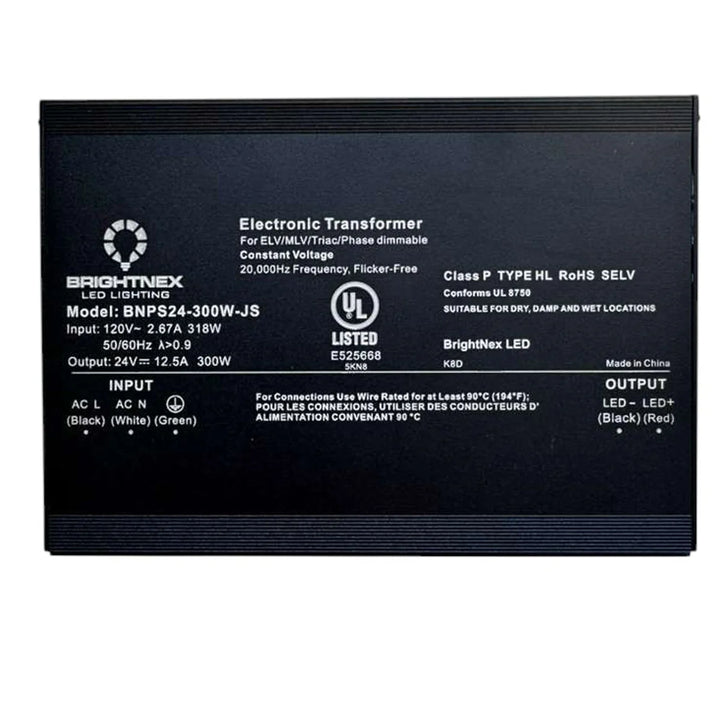

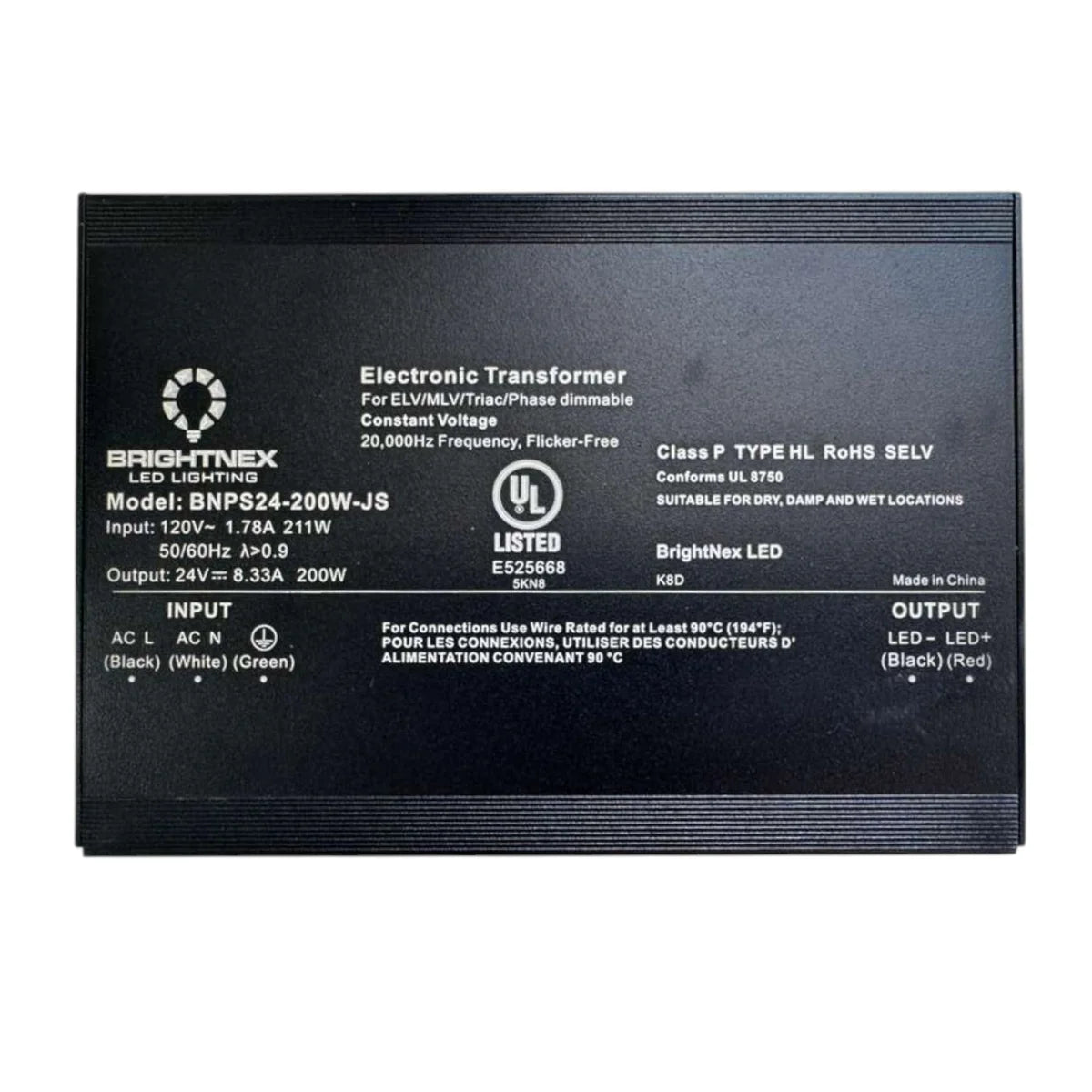

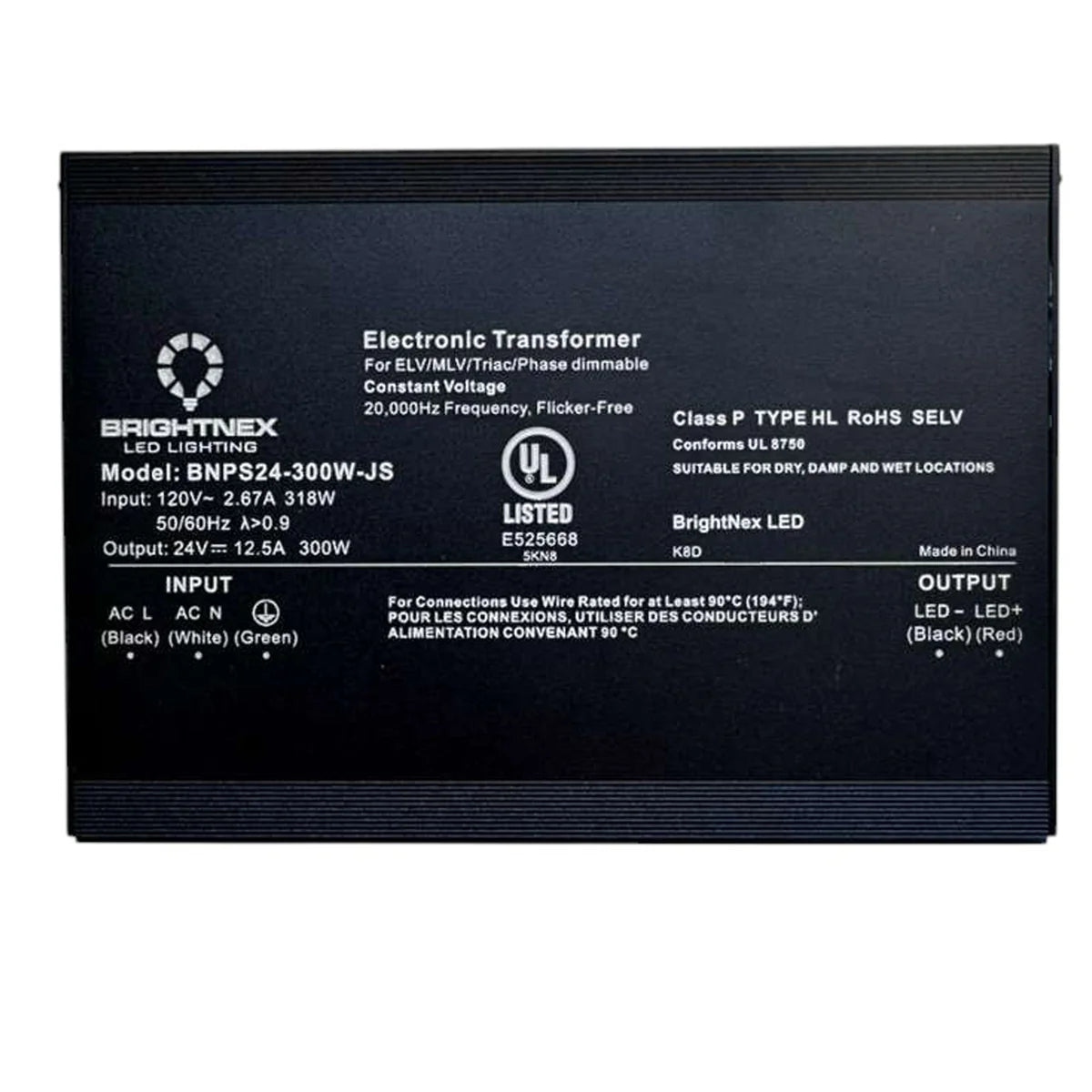

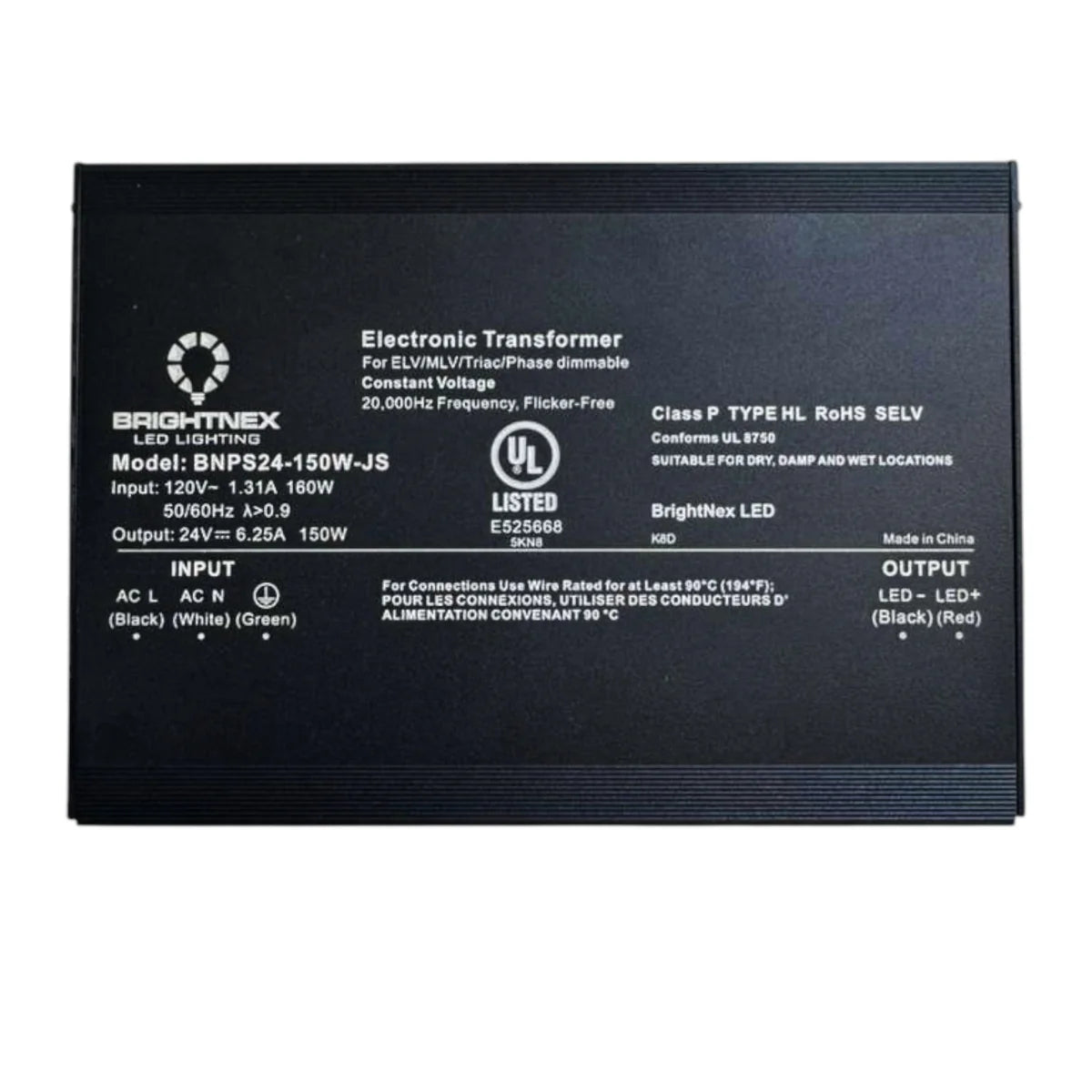

  • Certifications: UL8750, FCC, ICES-005, Class P, Type HL, SELV, RoHS, REACH

  • Enclosure Rating: Dry, Damp, Wet Location (Not for Submersion)

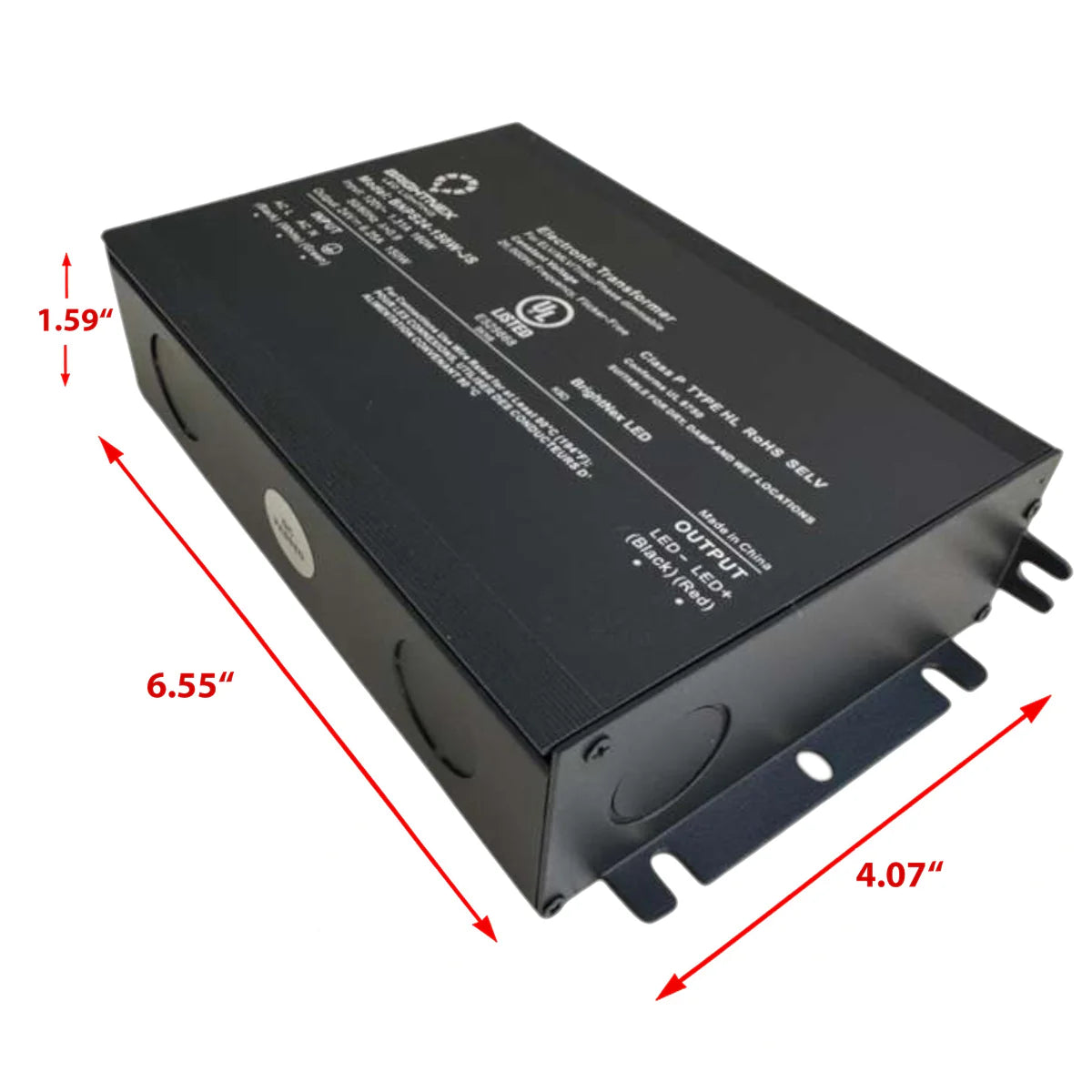

  • Dimensions: 6.55" × 4.07" × 1.59" (L × W × H)

  • Weight: 1.82 lbs (0.826 kg)

🎚️ Dimming Compatibility:

  • Dimming Range: 0–100%

  • Dimming Types:

    • TRIAC (Leading Edge)

    • ELV (Trailing Edge)

    • MLV (Magnetic Low Voltage)

  • Tested Compatible With:

    • Lutron Diva, CL

    • Leviton Decora and SureSlide

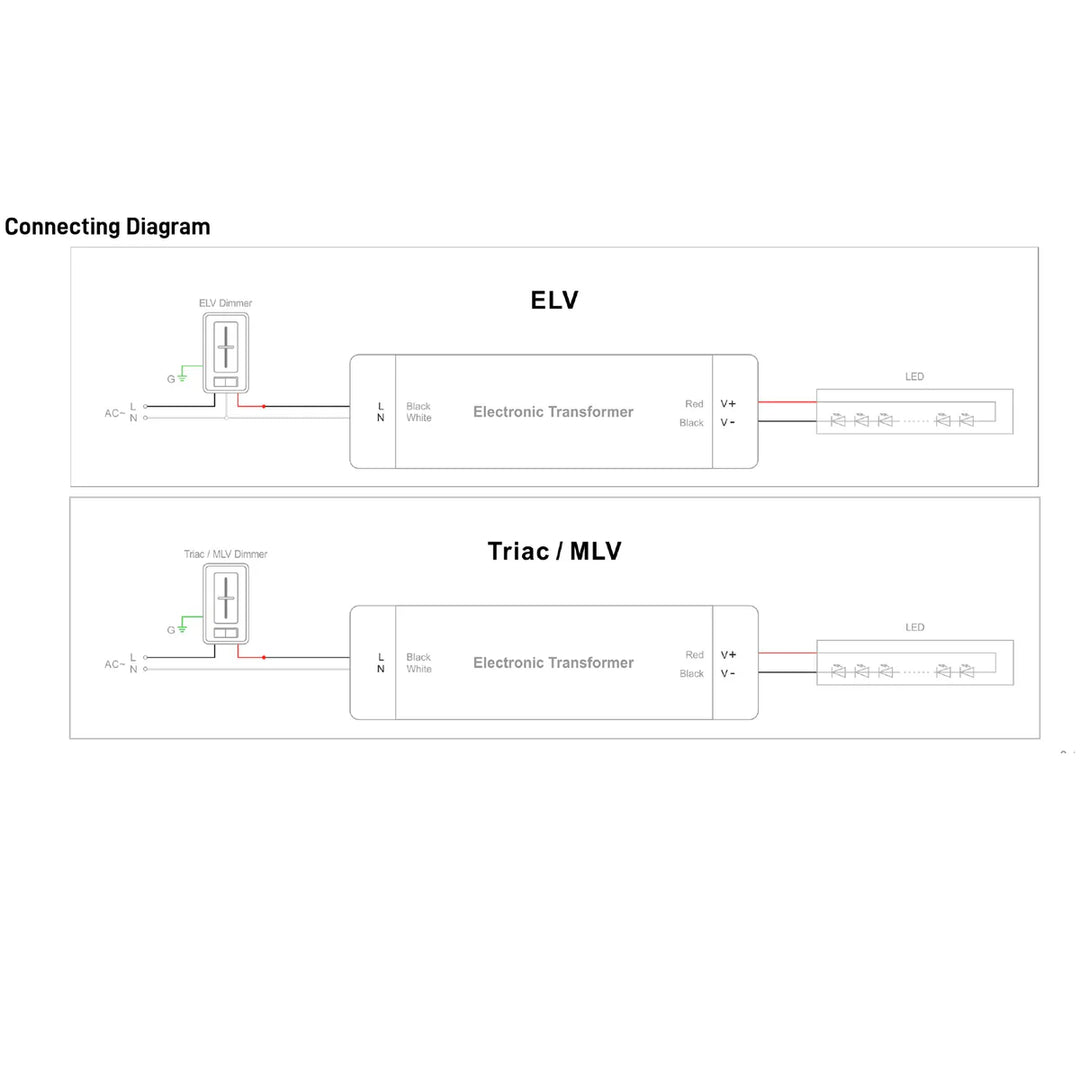

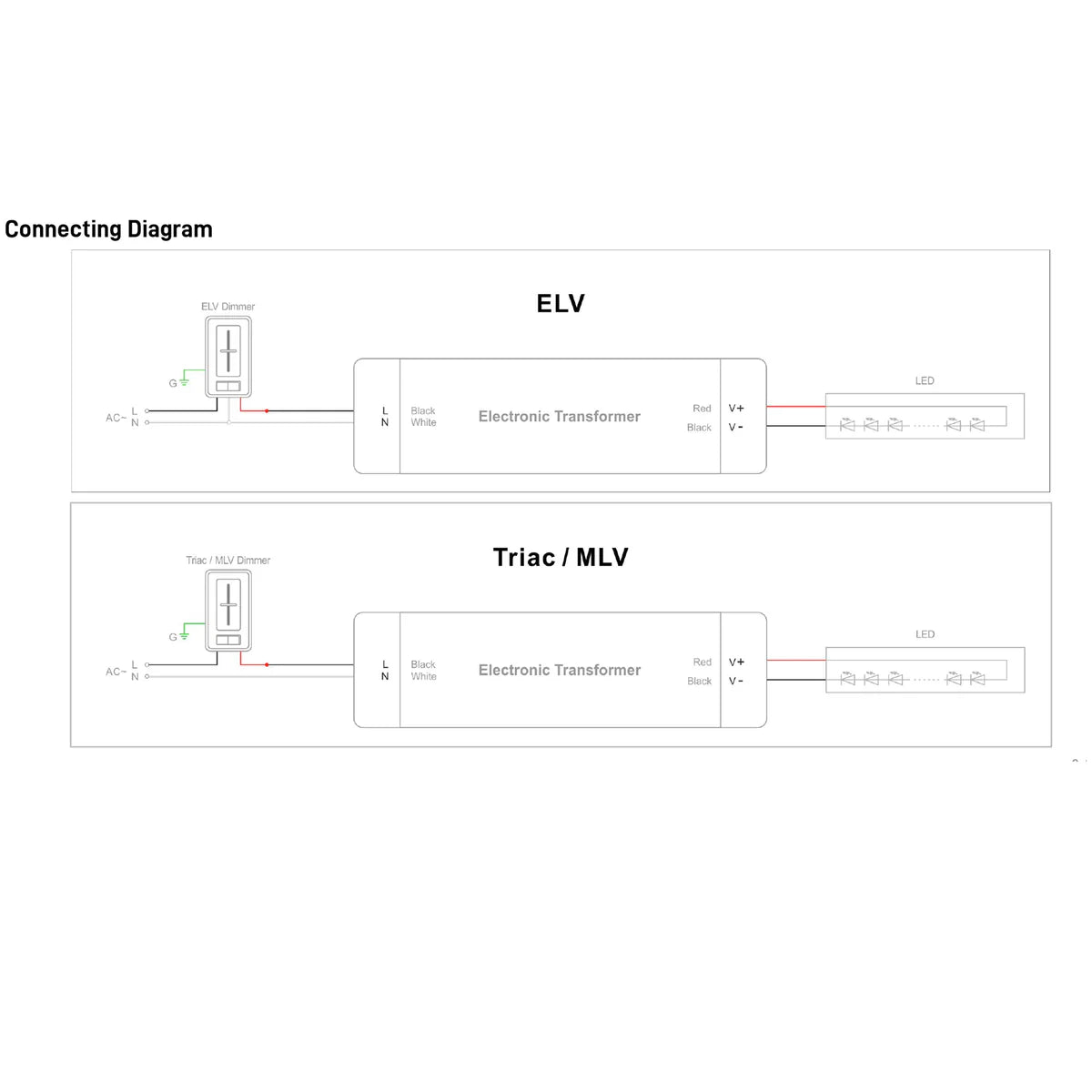

  • Input (AC 120V):

    • Black – Line (L)

    • White – Neutral (N)

    • Green – Ground (G)

  • Output (DC 24V):

    • Red – V+

    • Black – V–

⚡ Typical Applications:

  • High-output 24V LED strip, tape, or module lighting

  • Residential or commercial dimmable lighting systems

  • Class P UL-compliant large-scale LED assemblies

Reason to Buy from Us:

  1. No surprises or hidden fees.
  2. Safe payments via PayPal.
  3. 30 Day Money Back Guarantee.
  4. Real helpful humans on our support help desk!
  5. Tracking number for every order

Input: 120V AC, 50/60Hz
Output: DC24V 150W, 200W or 300W
Certification: UL Certified, Class P, Type HL
Dimming Compatibility: Triac/ELV/MLV dimming
Environment: Suitable for wet, damp, and dry locations
Dimming Range: 0-100%
Housing: Aluminum housing for enhanced durability in various environments
Compatibility: Works with popular dimmers on the market, including Lutron-CL, Diva series, Leviton Decora and SureSlide
Load Range: Super low loading request, performs perfectly at 10-100% load
Protection: Built-in short-circuit and over-load protection
Type: Constant voltage
Total Harmonic Distortion (THD): <20% @ 120V Max. load
Power Factor: Built-in active PFC, typical power factor = >0.9
