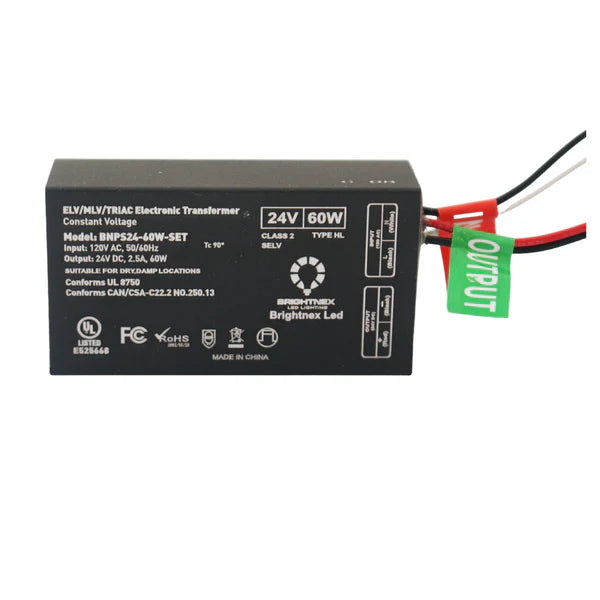

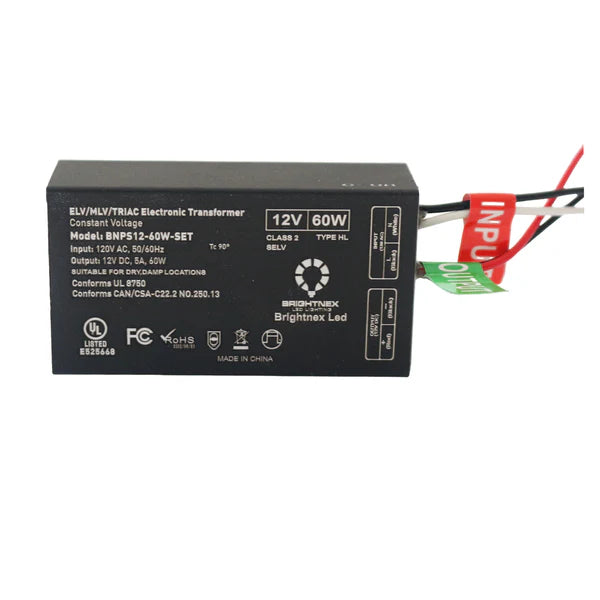

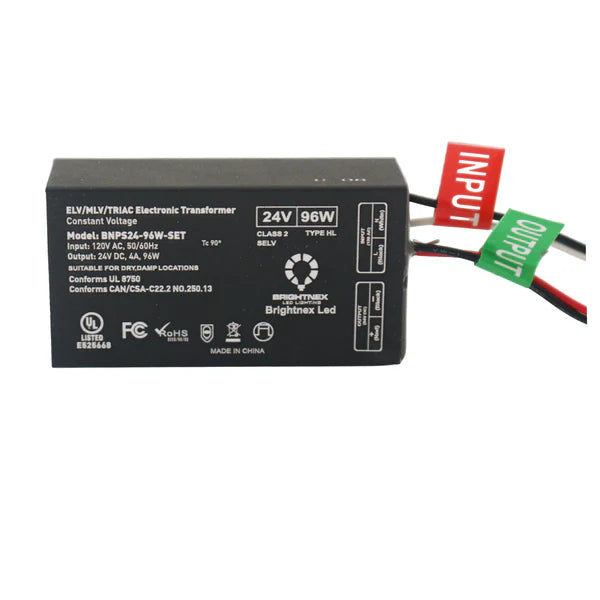

Name: 12V/24V DC Low Voltage Dimmable Compact Transformers UL Listed LED Driver IP65 Outdoor Rated
Brand: BrightNext
SKU: DCT-12V-DC-60W
Price: 33.99 USD
Availability: InStock

12V/24V DC Low Voltage Dimmable Compact Transformers UL Listed LED Driver IP65 Outdoor Rated

Precio

Subscribe to get 10% off on your first purchase!

Specifications

• Input: 120V AC, 0.7A, 50/60Hz • Output: 12V DC 60W, 24V DC 60W and 24V DC 96W • Dimensions: 2.83x1.53x0.79 inches (LWH) • Rated for indoor use - Suitable for dry and damp locations • Fully Dimmable

Cantidad

Pairs well with

[{"id":44325145739453,"title":"12V DC 60W","option1":"12V DC 60W","option2":null,"option3":null,"sku":"DCT-12V-DC-60W","requires_shipping":true,"taxable":true,"featured_image":{"id":34965904982205,"product_id":7823160410301,"position":1,"created_at":"2024-06-25T14:48:07-07:00","updated_at":"2024-06-25T14:48:08-07:00","alt":null,"width":600,"height":600,"src":"\/\/www.sunbrightlighting.com\/cdn\/shop\/files\/12V60W.webp?v=1719352088","variant_ids":[44325145739453]},"available":true,"name":"12V\/24V DC Low Voltage Dimmable Compact Transformers UL Listed LED Driver IP65 Outdoor Rated - 12V DC 60W","public_title":"12V DC 60W","options":["12V DC 60W"],"price":3399,"weight":1361,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":27342241726653,"position":1,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.sunbrightlighting.com\/cdn\/shop\/files\/12V60W.webp?v=1719352088"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44325146132669,"title":"24V DC 60W","option1":"24V DC 60W","option2":null,"option3":null,"sku":"DCT-24V-DC-60W","requires_shipping":true,"taxable":true,"featured_image":{"id":34965904949437,"product_id":7823160410301,"position":2,"created_at":"2024-06-25T14:48:07-07:00","updated_at":"2024-06-25T14:48:08-07:00","alt":null,"width":600,"height":600,"src":"\/\/www.sunbrightlighting.com\/cdn\/shop\/files\/24V60W.webp?v=1719352088","variant_ids":[44325146132669]},"available":true,"name":"12V\/24V DC Low Voltage Dimmable Compact Transformers UL Listed LED Driver IP65 Outdoor Rated - 24V DC 60W","public_title":"24V DC 60W","options":["24V DC 60W"],"price":3399,"weight":1361,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":27342241759421,"position":2,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.sunbrightlighting.com\/cdn\/shop\/files\/24V60W.webp?v=1719352088"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44325151899837,"title":"24V DC 96W","option1":"24V DC 96W","option2":null,"option3":null,"sku":"DCT-24V-DC-96W","requires_shipping":true,"taxable":true,"featured_image":{"id":34965905047741,"product_id":7823160410301,"position":3,"created_at":"2024-06-25T14:48:07-07:00","updated_at":"2024-06-25T14:48:08-07:00","alt":null,"width":600,"height":600,"src":"\/\/www.sunbrightlighting.com\/cdn\/shop\/files\/24V96W.webp?v=1719352088","variant_ids":[44325151899837]},"available":true,"name":"12V\/24V DC Low Voltage Dimmable Compact Transformers UL Listed LED Driver IP65 Outdoor Rated - 24V DC 96W","public_title":"24V DC 96W","options":["24V DC 96W"],"price":4499,"weight":1361,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":27342241792189,"position":3,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.sunbrightlighting.com\/cdn\/shop\/files\/24V96W.webp?v=1719352088"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Introducing the Smallest Dimmable Transformer, designed for maximum efficiency and convenience. Measuring only 2.83x1.53x0.79 inches (LWH), this UL-certified dimmable transformer (LED driver) is compatible with Triac/ELV/MLV dimming systems, making it perfect for various lighting applications.

Ideal for dry and damp locations, it fits easily into a 4" junction box. Its compact size makes it a versatile option for a variety of dimming systems.

Specifications:

Input: 120V AC, 0.7A, 50/60Hz
Output: 12V DC 60W, 24V DC 60W and 24V DC 96W

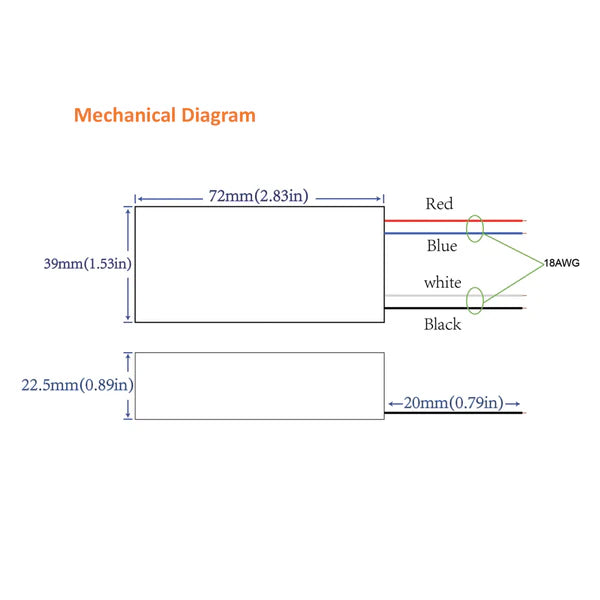

Dimensions: 2.83x1.53x0.79 inches (LWH)

Features:

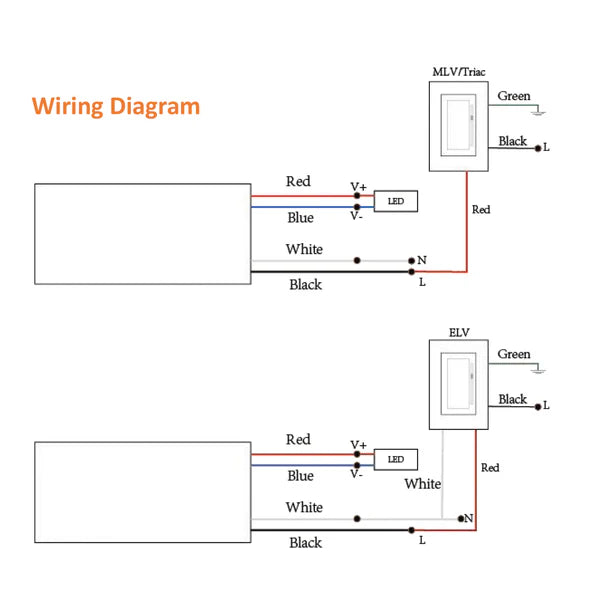

Compatibility: Works with Triac/ELV/MLV dimming, Lutron-CL, and Diva series.
Dimming Range: 0-100%
Certification: UL Certified, Class 2, Type HL
Environment: IP65, Suitable for damp and dry locations.
Input Voltage: 120V AC
Frequency Range: 47-63Hz
Efficiency: 88% @ 120VAC
Operating Temperature: Tcase = -40°C to +60°C
Operating Humidity: 20-95% RH non-condensing
Storage Conditions: -40°C to +90°C, 10-95% RH
Power Factor: Built-in active PFC, typical power factor = 0.94
Total Harmonic Distortion (THD): <20% (@100% load)
Type: Constant voltage
Load Range: Super low loading request, works perfectly at 20-100% load.
Protection: Short-circuit and overload protection.

Upgrade your lighting setup with this efficient, compact, and versatile transformer that ensures high performance and reliability in all your projects.

Reason to Buy from Us:

No surprises or hidden fees.
Safe payments via PayPal.
30 Day Money Back Guarantee.
Real helpful humans on our support helpdesk!
Tracking number for every order

Compatibility: Works with Triac/ELV/MLV dimming, Lutron-CL, and Diva series.
Dimming Range: 0-100%
Certification: UL Certified, Class 2, Type HL
Environment: Suitable for damp and dry locations.
Input Voltage: 120V AC
Frequency Range: 47-63Hz
Efficiency: 88% @ 120VAC
Operating Temperature: Tcase = -40°C to +60°C
Operating Humidity: 20-95% RH non-condensing
Storage Conditions: -40°C to +90°C, 10-95% RH
Power Factor: Built-in active PFC, typical power factor = 0.94
Total Harmonic Distortion (THD): <20% (@100% load)
Type: Constant voltage
Load Range: Super low loading request, works perfectly at 20-100% load.
Protection: Short-circuit and overload protection.
